Removal [10/2022 - ]: Procedure

  1. CHANGE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM SETTINGS
    Refer to CUSTOMIZE PARAMETERS [10/2022 - ]
  2. STEERING WHEEL POSITION
    Refer to PROCEDURE - Step 2 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 2 [08/2023 - ]
  3. REMOVE LOWER STEERING COLUMN COVER
    Refer to PROCEDURE - Step 3 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 3 [08/2023 - ]
  4. REMOVE UPPER STEERING COLUMN COVER

    Refer to PROCEDURE - Step 4 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 4 [08/2023 - ]

  5. REMOVE TURN SIGNAL SWITCH

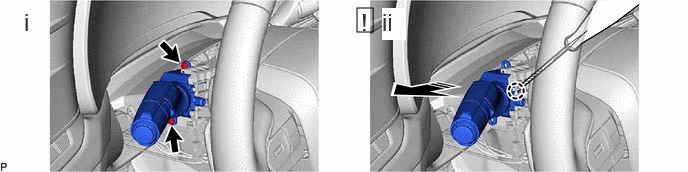

    1. GTY1134213Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Remove the 2 screws.
      2. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the turn signal switch as shown in the illustration.
        NOTE:

        If the claw is pulled with excessive force, it may break.
