Removal [08/2023 - ]: Procedure

  1. REMOVE BATTERY CHARGER CONNECTOR OPENING LID SUB-ASSEMBLY

    Refer to REMOVAL [08/2023 - ]

  2. REMOVE CHARGE LID LOCK WITH MOTOR LOCK ASSEMBLY

    Refer to PROCEDURE - Step 2

  3. REMOVE SPOT LIGHT ASSEMBLY

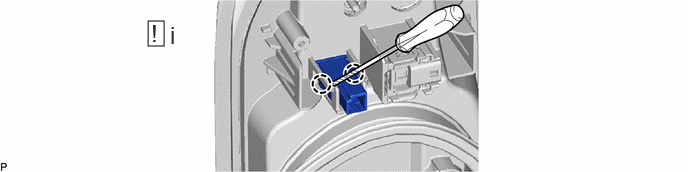

    1. GTY1207625Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws to remove the spot light assembly.
