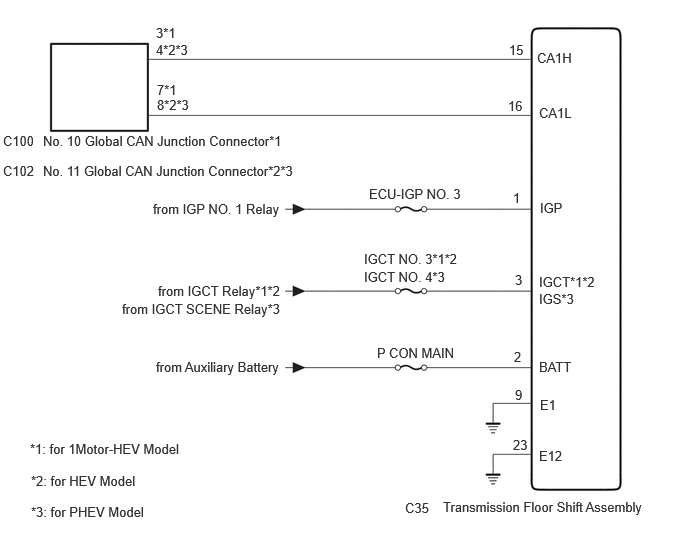

Shift Control ECU Communication Stop Mode [08/2023 - ]: Wiring Diagram

GTY1205744

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
