Hybrid Vehicle Control ECU Communication Stop Mode [08/2023 - ]: Wiring Diagram

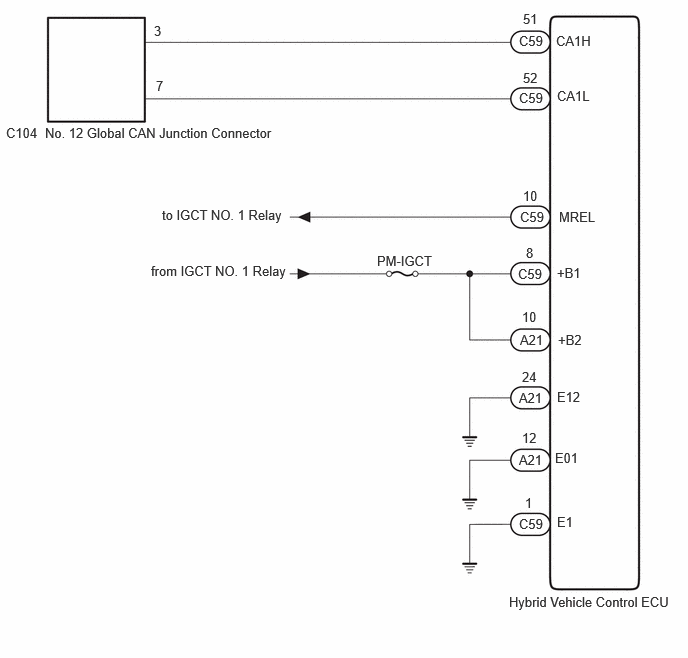

for 1Motor-HEV Model

GTY1128511Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

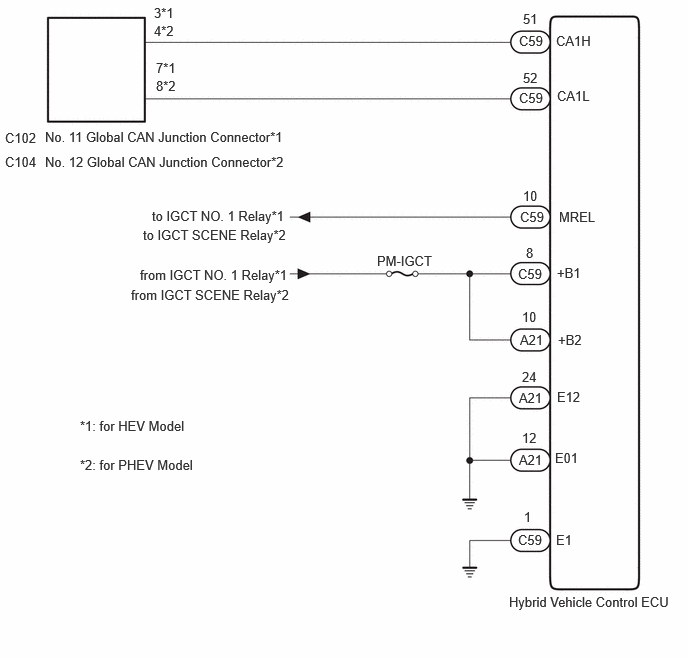

for HEV, PHEV Model

GTY1207401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
