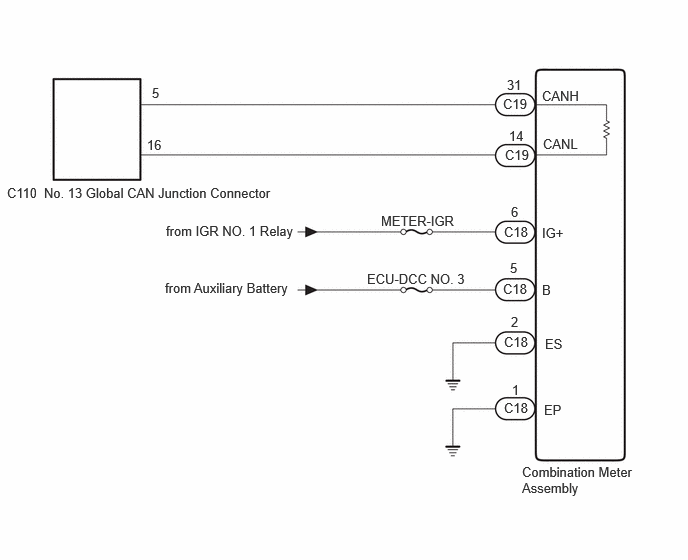

Combination Meter ECU Communication Stop Mode [10/2022 - ]: Wiring Diagram

GTY1127092Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
