CAUTION / NOTICE / HINt
COMPONENTS (INSTALLATION)
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | DIFFERENTIAL MOUNT CUSHION | 41651G | See step 1 | - | - |
| 2 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH | 52272A | See step 2 | - | - |
| 3 | INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH | 52272A | See step 3 | - | - |
| 4 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH | 52271E | See step 4 | - | - |
| 5 | INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH | 52271E | - | - | - |
| 6 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH | 52276A | See step 6 | - | - |
| 7 | INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH | 52276A | See step 7 | - | - |
| 8 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | 52275B | See step 8 | - | - |
| 9 | INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | 52275B | - | - | - |
| 10 | REAR LOWER REAR SUSPENSION MEMBER STOPPER | 52278C | - | - | - |
| 11 | REAR SUSPENSION MENBER LOWER STOPPER RETAINER LH | 52278A | - | - | - |
| 12 | REAR SUSPENSION MEMBER LOWER STOPPER RETAINER RH | 52277A | - | - | - |
| • | Non-reusable part | - | - |

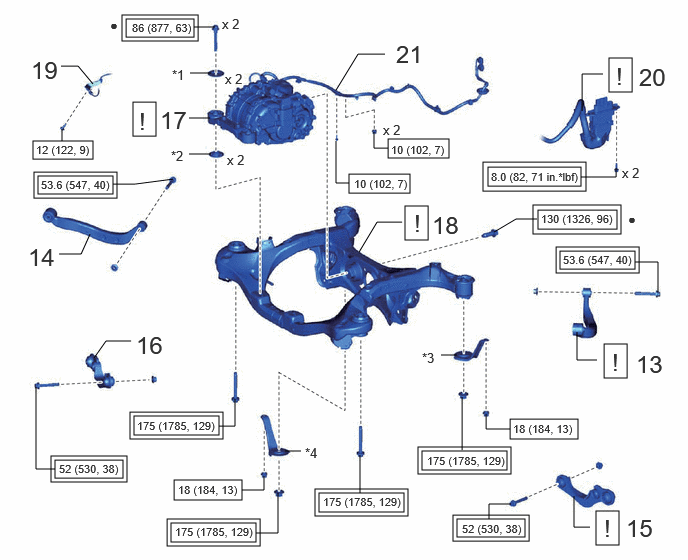

Fig 2: Rear Suspension Member (For PHEV Model) Installation Components With Torque Specifications [08/2023 - 10/2024] (2 Of 5)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 13 | REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH | 48790F | See step 13 | - | - |
| 14 | REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH | 48790E | - | - | - |
| 15 | REAR UPPER CONTROL ARM ASSEMBLY LH | 48790 | See step 15 | - | - |
| 16 | REAR UPPER CONTROL ARM ASSEMBLY RH | 48770A | - | - | - |
| 17 | REAR TRANSAXLE WITH MOTOR AND INVERTER ASSEMBLY | 30610A | See step 17 | - | - |
| 18 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | 51206A | See step 18 | - | - |
| 19 | INSTALL FRAME WIRE | 82164 | - | - | - |
| 20 | FLOOR UNDER WIRE | 821H1 | - | - | - |
| 21 | CONNECT FRAME WIRE | 82164 | - | - | - |
| *1 | UPPER DIFFERENTIAL MOUNT STOPPER | *2 | LOWER DIFFERENTIAL MOUNT STOPPER |
| *3 | REAR SUSPENSION MEMBER REAR LOWER BRACE LH | *4 | REAR SUSPENSION MEMBER REAR LOWER BRACE RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | - | - |
Fig 3: Rear Suspension Member (For PHEV Model) Installation Components With Torque Specifications [08/2023 - 10/2024] (3 Of 5)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 22 | REAR SHOCK ABSORBER ASSEMBLY LH | 48540 | See step 22 | - | - |
| 23 | REAR SHOCK ABSORBER ASSEMBLY RH | 48530 | - | - | - |
| 24 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | 48740F | See step 24 | - | - |
| 25 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH | 48730F | - | - | - |
| 26 | REAR STABILIZER BAR | 48812 | See step 26 | - | - |
| 27 | REAR DRIVE SHAFT ASSEMBLY LH | 42340B | - | - | - |
| 28 | REAR DRIVE SHAFT ASSEMBLY RH | 42330 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |
Fig 4: Rear Suspension Member (For PHEV Model) Installation Components With Torque Specifications [08/2023 - 10/2024] (4 Of 5)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 29 | LOWER MAIN MUFFLER HEAT INSULATOR | 58328B | - | - | - |
| 30 | TAIL EXHAUST PIPE ASSEMBLY | 17430 | - | - | - |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 31 | NO. 1 SPEAKER ASSEMBLY WITH BOX | 86150 | - | - | - |
| 32 | SERVICE PLUG GRIP | G3834 | - | - | - |
| 33 | INSPECT FOR EXHAUST GAS LEAK | - | See step 33 | - | - |
| 34 | INSPECT AND ADJUST REAR WHEEL ALIGNMENT | - | - | - | See step 34 |
| 35 | PERFORM INITIALIZATION | - | - | - | See step 35 |
