Caution / Notice / Hint
COMPONENTS (INSTALLATION)

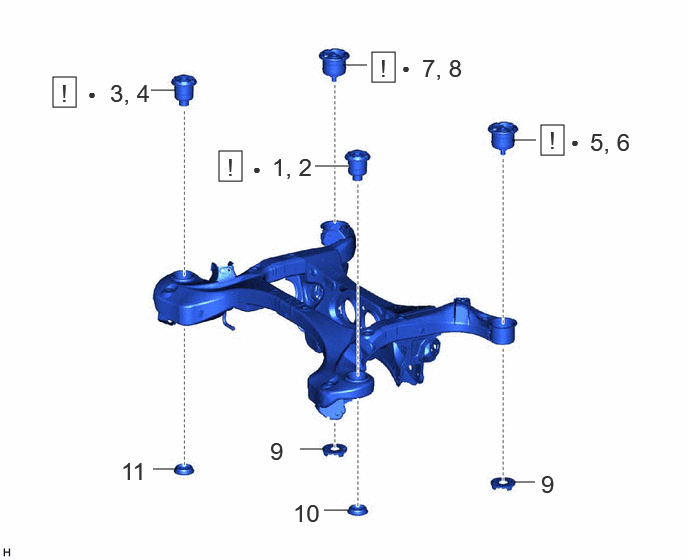

| Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH | 52272A | See step 1 | - | - |
| 2 | INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION LH | 52272A | See step 2 | - | - |
| 3 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH | 52271E | See step 3 | - | - |
| 4 | INSTALL REAR SUSPENSION MEMBER FRONT BODY MOUNTING CUSHION RH | 52271E | See step 4 | - | - |
| 5 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH | 52276A | See step 6 | - | - |
| 6 | INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION LH | 52276A | See step 6 | - | - |
| 7 | TEMPORARILY INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | 52275B | See step 7 | - | - |
| 8 | INSTALL REAR SUSPENSION MEMBER REAR BODY MOUNT CUSHION RH | 52275B | See step 8 | - | - |
| 9 | REAR LOWER REAR SUSPENSION MEMBER STOPPER | 52278C | - | - | - |
| 10 | REAR SUSPENSION MENBER LOWER STOPPER RETAINER LH | 52278A | - | - | - |
| 11 | REAR SUSPENSION MEMBER LOWER STOPPER RETAINER RH | 52277A | - | - | - |
| • | Non-reusable part | - | - |

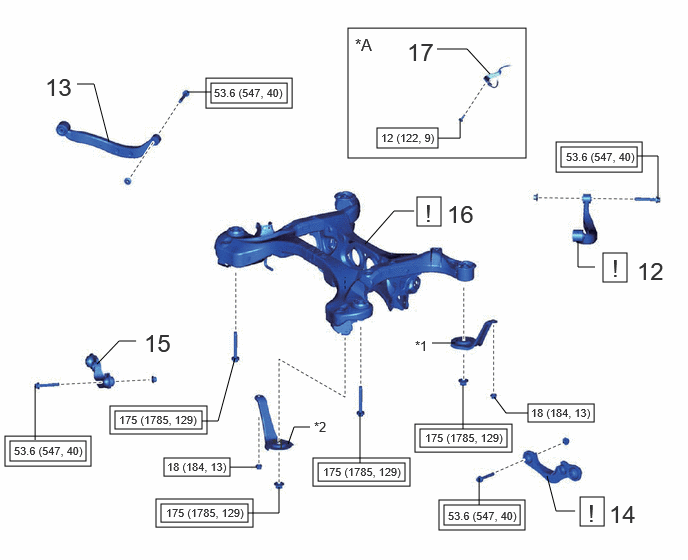

Fig 2: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [10/2024 - ] (2 Of 4)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 12 | REAR UPPER NO. 2 CONTROL ARM ASSEMBLY LH | 48790 | See step 14 | - | - |
| 13 | REAR UPPER NO. 2 CONTROL ARM ASSEMBLY RH | 48770A | - | - | - |
| 14 | REAR UPPER CONTROL ARM ASSEMBLY LH | 48790F | See step 12 | - | - |
| 15 | REAR UPPER CONTROL ARM ASSEMBLY RH | 48790E | - | - | - |
| 16 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | 51206A | See step 16 | - | - |
| 17 | FRAME WIRE (w/ Height Control Sensor) | 82164 | - | - | - |
| *A | w/ Height Control Sensor | - | - |
| *1 | REAR SUSPENSION MEMBER REAR LOWER BRACE LH | *2 | REAR SUSPENSION MEMBER REAR LOWER BRACE RH |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque |

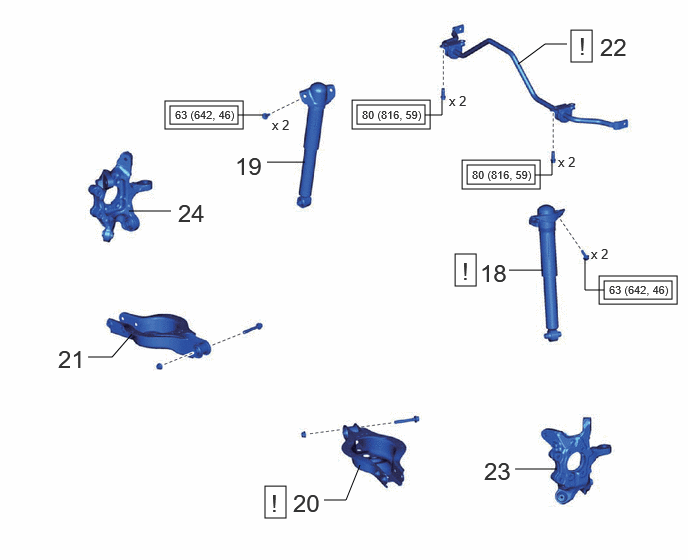

Fig 3: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [10/2024 - ] (3 Of 4)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 18 | REAR SHOCK ABSORBER ASSEMBLY LH | 48540 | See step 18 | - | - |
| 19 | REAR SHOCK ABSORBER ASSEMBLY RH | 48530 | - | - | - |
| 20 | REAR NO. 2 SUSPENSION ARM ASSEMBLY LH | 48740F | See step 20 | - | - |
| 21 | REAR NO. 2 SUSPENSION ARM ASSEMBLY RH | 48730F | - | - | - |
| 22 | REAR STABILIZER BAR | 48812 | See step 22 | - | - |
| 23 | REAR AXLE CARRIER SUB-ASSEMBLY LH | 42305 | - | - | - |
| 24 | REAR AXLE CARRIER SUB-ASSEMBLY RH | 42304 | - | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | - | - |

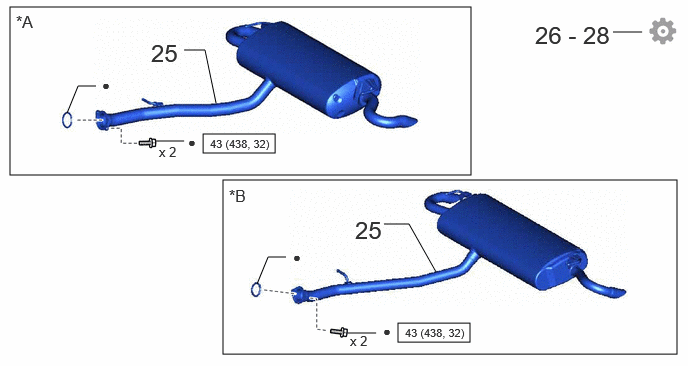

Fig 4: Rear Suspension Member (For 2WD) Installation Components With Torque Specifications [10/2024 - ] (4 Of 4)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 25 | TAIL EXHAUST PIPE ASSEMBLY | 17430 | - | - | - |
| 26 | INSPECT FOR EXHAUST GAS LEAK | - | - | - | See step 26 |
| 27 | INSPECT AND ADJUST REAR WHEEL ALIGNMENT | - | - | - | See step 27 |
| 28 | PERFORM INITIALIZATION | - | - | - | See step 28 |
| *A | for T24A-FTS | *B | for A25A-FXS |
| N.m (kgf/cm, ft.lbf): Specified torque | • | Non-reusable part |
