Installation [10/2022 - ]: Procedure
- INSTALL MULTIPLEX NETWORK STEERING ECU (w/ Multiplex Network Steering ECU)
See step 1 - INSTALL NO. 1 SWITCH WIRE
for UA81E, UA81F: Refer to PROCEDURE - Step 1
for P810: Refer to PROCEDURE - Step 1
for PC60: Refer to PROCEDURE - Step 1
- INSTALL SHIFT PADDLE SWITCH (TRANSMISSION SHIFT SWITCH ASSEMBLY)
for UA81E, UA81F: Refer to PROCEDURE - Step 2
for P810: Refer to PROCEDURE - Step 2
for PC60: Refer to PROCEDURE - Step 2
- INSTALL STEERING PAD SWITCH ASSEMBLY
- ALIGN FRONT WHEELS FACING STRAIGHT AHEAD
- INSPECT AND ADJUST SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
Refer to PROCEDURE - Step 7 [10/2022 - 08/2023] , or refer to PROCEDURE - Step 7 [08/2023 - ] - INSTALL STEERING WHEEL ASSEMBLY

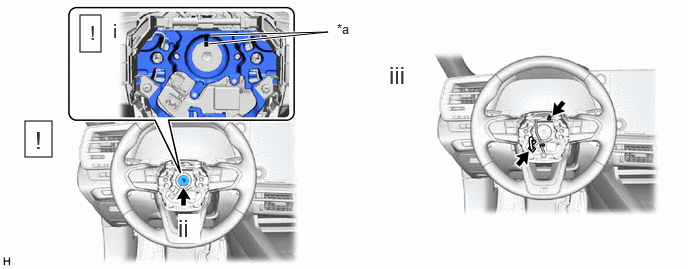

*a Matchmark - - - Align the matchmarks on the steering wheel assembly and steering main shaft to install the steering wheel assembly.
- Using a 10 mm hexagon socket wrench, install the steering wheel assembly set bolt.
Torque: 62 N.m (632 kgf/cm, 46 ft.lbf)
- Connect each connector to the spiral cable with sensor sub-assembly and steering wheel assembly.
- INSTALL HORN BUTTON ASSEMBLY
Refer to INSTALLATION [10/2022 - ]
- CHECK STEERING WHEEL CENTER POINT
Refer to ADJUSTMENT [10/2022 - ]
