Removal [08/2023 - ]: Procedure

  1. REMOVE REAR SEATBACK ASSEMBLY

    Refer to REMOVAL [08/2023 - ]

  2. REMOVE REAR DOOR SCUFF PLATE

    Refer to PROCEDURE - Step 21

  3. REMOVE BATTERY SERVICE COVER BOARD

    Refer to PROCEDURE - Step 22

  4. REMOVE REAR SEAT SIDE GARNISH

    Refer to PROCEDURE - Step 41

  5. REMOVE REAR FLOOR FINISH PLATE

    Refer to PROCEDURE - Step 42

  6. REMOVE ROPE HOOK ASSEMBLY
    Refer to PROCEDURE - Step 43
  7. REMOVE NO. 1 LUGGAGE COMPARTMENT TRIM HOOK

    Refer to PROCEDURE - Step 44

  8. REMOVE NO. 1 LUGGAGE COMPARTMENT LIGHT ASSEMBLY
    Refer to PROCEDURE - Step 1
  9. REMOVE DECK TRIM SIDE PANEL ASSEMBLY
    1. for LH Side:

      Refer to PROCEDURE - Step 46

    2. for RH Side:

      Refer to PROCEDURE - Step 53
  10. REMOVE REAR NO. 1 POWER OUTLET SOCKET ASSEMBLY (for LH Side)

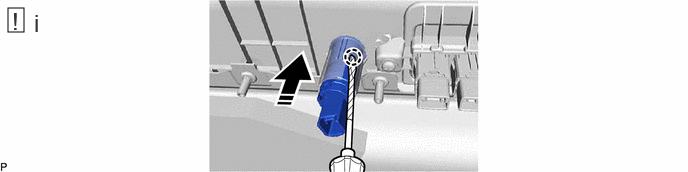

    1. GTY1134440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
      1. Using a screwdriver with its tip wrapped with protective tape, disengage the claw and remove the rear No. 1 power outlet socket assembly as shown in the illustration.
  11. REMOVE REAR POWER OUTLET SOCKET COVER (for LH Side)

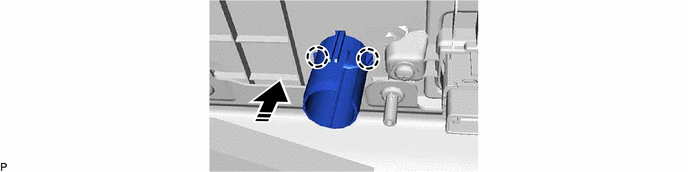

    1. GTY1137528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
  12. REMOVE NO. 2 POWER OUTLET SOCKET ASSEMBLY (for RH Side)

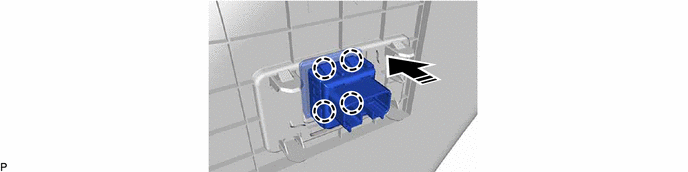

    1. GTY1137482Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction - -
