Fuel Lid Opener System Operation Message Display Malfunction [08/2023 - ]: Procedure

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

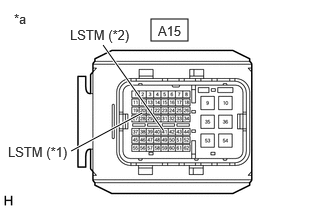

1. Disconnect the A15 ECM connector.
2. Measure the voltage according to the value(s) in the table below.

   Standard Voltage (for 1Motor-HEV Model)

   Tester Connection	Condition	Specified Condition
   A15-20 (LSTM) - Body ground	Ignition switch off	11 to 14 V

   Standard Voltage (for HEV Model, for PHEV Model)

   Tester Connection	Condition	Specified Condition
   A15-41 (LSTM) - Body ground	Ignition switch off	11 to 14 V

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  3

Result:

OK

See step  2

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Connect the ECM connector.
2. Operate the fuel lid opener switch.
3. Check the signal waveform according to the condition(s) in the table below.
   NOTE:

   Perform the inspection from the back of the connector with the connector connected.

   1. Waveform 1:

      Item	Condition
      Tester Connection	C18-28 (LST1) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Condition	The following message (interrupt display) being displayed on the multi-information display: "Ready to Refuel"

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   2. Waveform 2:

      Item	Condition
      Tester Connection	C18-28 (LST1) - Body ground
      Tool setting	5 V/DIV., 20 ms./DIV.
      Condition	The following message (interrupt display) being displayed on the multi-information display: "Close Fuel Lid"

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      This waveform is output when the fuel lid opener switch is operated if the fuel lid is open and any of the following conditions are met:

      • The vehicle has been driven for 1 km (0.6 mile) or more at a speed of 50 km/h (31 mph) or more.
      • 30 minutes or more have elapsed since the fuel lid opener switch was operated.

   Result

   Result	Proceed to
   All of the waveforms are output normally	A
   A waveform is not output normally	B

Result:

A

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2024]  , or refer to  REMOVAL [10/2024 - ]

Result:

B

REPLACE ECM

for A25A-FXS: Refer to REMOVAL [08/2023 - ]

for T24A-FTS (for 1Motor-HEV Model): Refer to REMOVAL [10/2022 - ]

1. Disconnect the C18 combination meter assembly connector.
2. Measure the resistance according to the value(s) in the table below.

   Standard Resistance (for 1Motor-HEV Model)

   Tester Connection	Condition	Specified Condition
   A15-20 (LSTM) - C18-28 (LST1)	Always	Below 1 Ω
   A15-20 (LSTM) or C18-28 (LST1) - Body ground	Always	10 kΩ or higher

   Standard Resistance (for HEV Model, for PHEV Model)

   Tester Connection	Condition	Specified Condition
   A15-41 (LSTM) - C18-28 (LST1)	Always	Below 1 Ω
   A15-41 (LSTM) or C18-28 (LST1) - Body ground	Always	10 kΩ or higher

   Result

   Proceed to
   OK
   NG

Result:

OK

REPLACE COMBINATION METER ASSEMBLY. Refer to  REMOVAL [10/2022 - 10/2024]  , or refer to  REMOVAL [10/2024 - ]

Result:

NG

REPAIR OR REPLACE HARNESS OR CONNECTOR
