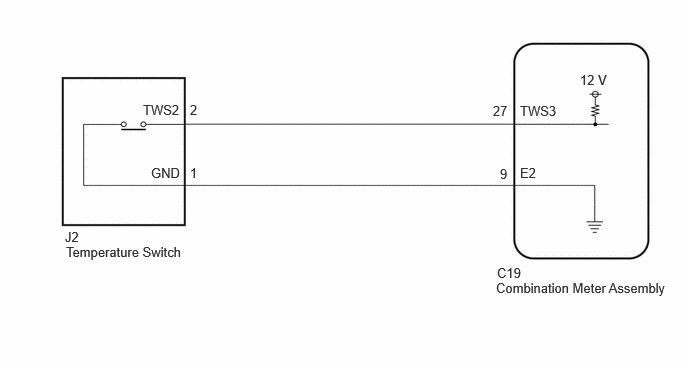

DTC B1503-09: Exhaust Heat Management Component Failure [10/2022 - ]: Wiring Diagram

GTY1135073

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
