Caution / Notice / Hint

COMPONENTS (INSTALLATION)

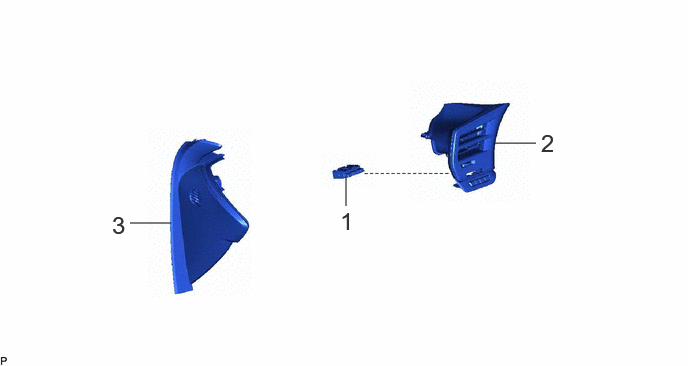

Fig 1: Trip Switch Installation Components
GTY1136244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 TRIP SWITCH 84975 - - -
2 NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY 55650 - - -
3 NO. 2 INSTRUMENT SIDE PANEL 55318F - - -
