Caution / Notice / Hint

NOTE:

After replacing the combination meter assembly, make sure to perform update ECU security key.

COMPONENTS (INSTALLATION)

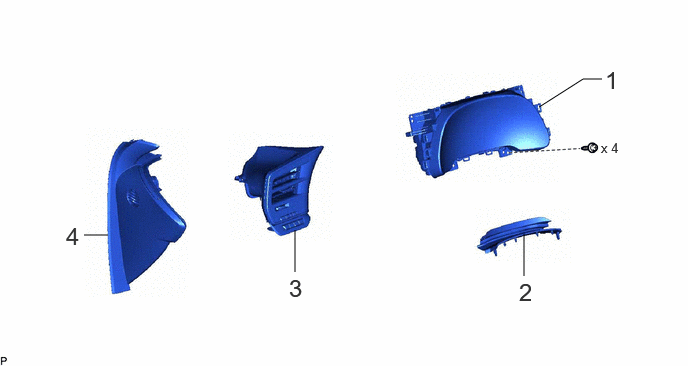

Fig 1: Combination Meter Installation Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Procedure		Part Name Code
1	COMBINATION METER ASSEMBLY	83100	-	-	-
2	INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY	55404D	-	-	-
3	NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY	55650	-	-	-
4	NO. 2 INSTRUMENT SIDE PANEL	55318F	-	-	-

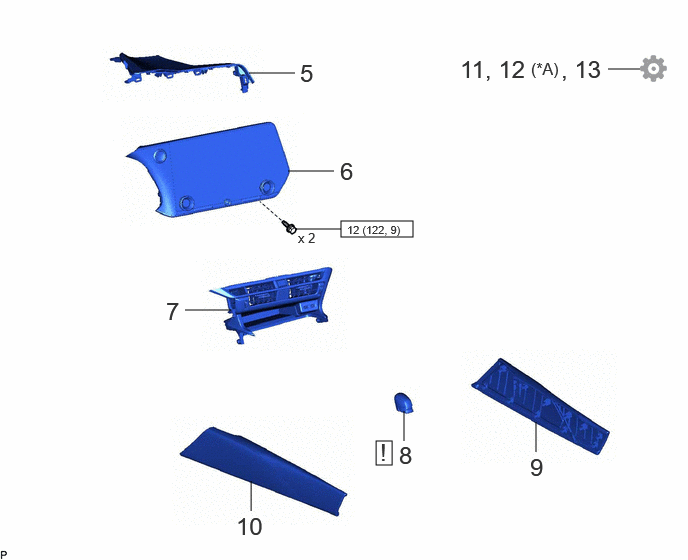

Fig 2: Combination Meter Installation Components With Torque Specifications (2 Of 2)

Callout - Procedure		Part Name Code
5	INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY	55403F	-	-	-
6	RADIO AND DISPLAY RECEIVER ASSEMBLY WITH BRACKET	-	-	-	-
7	CENTER INSTRUMENT PANEL REGISTER ASSEMBLY	55670A	-	-	-
8	SHIFT LEVER KNOB SUB-ASSEMBLY	33504F	See step 8	-	-
9	NO. 1 CONSOLE UPPER PANEL GARNISH	58833B	-	-	-
10	NO. 2 CONSOLE UPPER PANEL GARNISH	58834B	-	-	-
11	UPDATE ECU SECURITY KEY	-	-	-	See step 11
12	PERFORM REGISTRATION	-	-	-	See step 12
13	CUSTOMIZE POWER TILT AND POWER TELESCOPIC STEERING COLUMN SYSTEM	-	-	-	See step 13

*A	w/ Headup Display	-	-
	N.m (kgf/cm, ft.lbf): Specified torque	-	-
