Removal [11/2021 - 03/2024]: Procedure

REMOVE REAR WHEEL
Refer to REMOVAL [11/2021 - 03/2024]

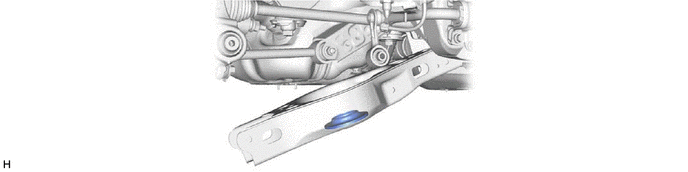

REMOVE NO. 1 LOWER CONTROL ARM COVER
See step 2
REMOVE REAR HEIGHT CONTROL SENSOR SUB-ASSEMBLY LH (for LH Side with Height Control Sensor)
Refer to REMOVAL [11/2021 - ]
SEPARATE REAR STABILIZER LINK ASSEMBLY

Refer to PROCEDURE - Step 4

REMOVE REAR COIL SPRING

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

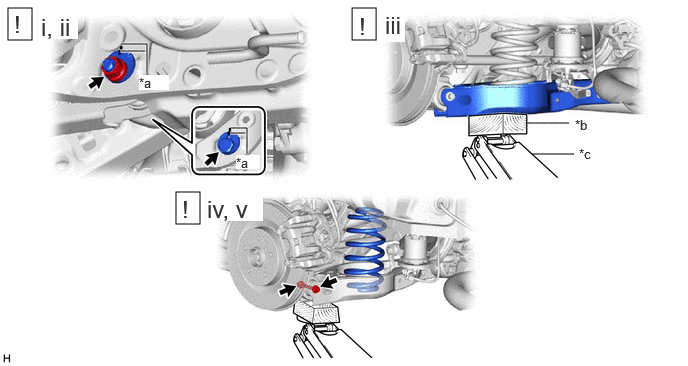

*a	Matchmark	*b	Wooden Block
*c	Jack	-	-

Place matchmarks on the No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear suspension member sub-assembly.
Loosen the nut (rear suspension member sub-assembly side) of the rear No. 2 suspension arm assembly.
NOTE:
Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.
Using a jack and wooden block, support the rear No. 2 suspension arm assembly.
NOTE:
- When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
- Make sure to perform this operation with the vehicle kept as low as possible.
Remove the bolt and nut, and separate the rear No. 2 suspension arm assembly from the rear axle carrier sub-assembly.
NOTE:
Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

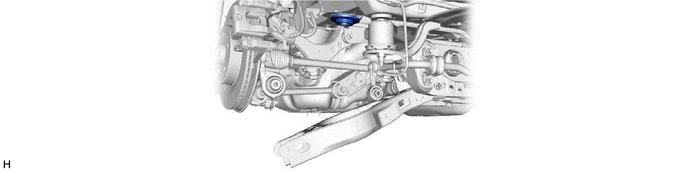

Slowly lower the rear No. 2 suspension arm assembly, and then remove the rear coil spring.
