Removal [11/2021 - ]: Procedure

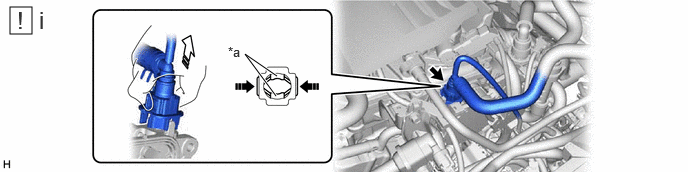

  1. DISCONNECT NO. 1 VACUUM HOSE CONNECTOR
    1. GTY1063621Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Retainer - -
      Pinch Pull off
      1. Pinch the retainer of the No. 1 vacuum hose connector, and then pull the No. 1 vacuum hose connector off of the vacuum pump assembly.
        NOTE:

        Be sure to disconnect the No. 1 vacuum hose connector by hand.

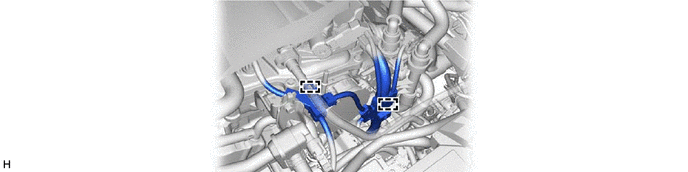

  2. SEPARATE ENGINE WIRE
    1. GTY1064132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

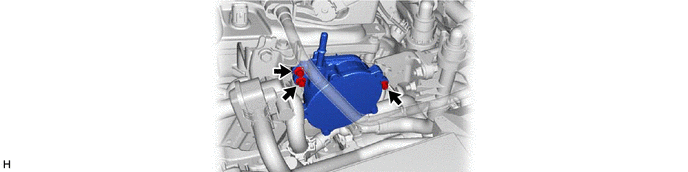

  3. REMOVE VACUUM PUMP ASSEMBLY
    1. GTY1064131Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 VACUUM PUMP O-RING
    1. GTY1063891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
