DTC B1507-18: Turn Signal Light Circuit Current Below Threshold [03/2022 - ]: Wiring Diagram

except TMMC Made

GTY1071669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1071890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1071634

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1072765

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for TMMC Made

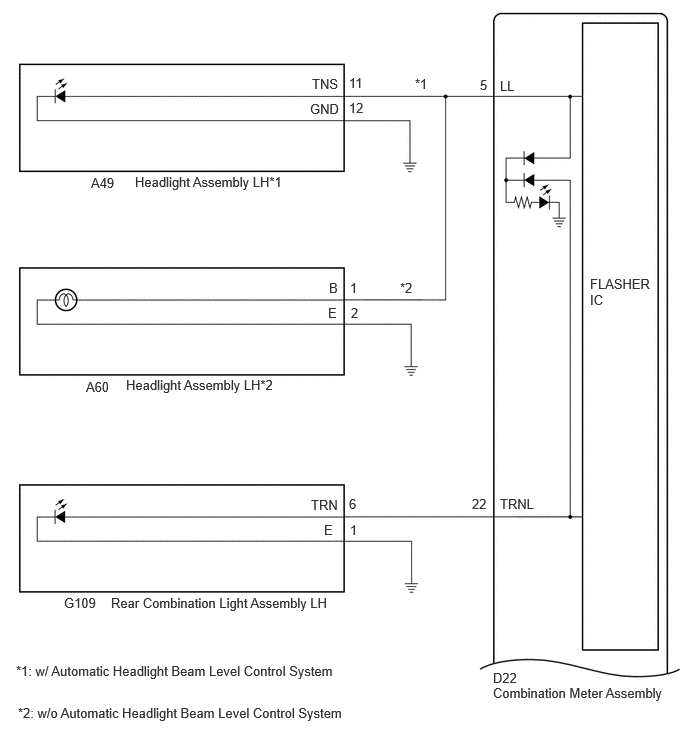

GTY1133853

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

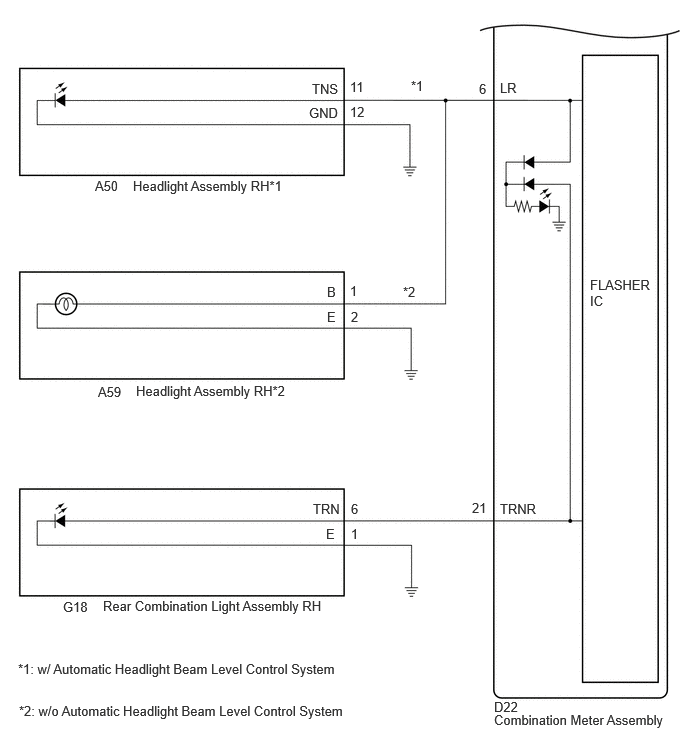

GTY1135664

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
