Parts Location [11/2021 - ]: Illustration

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

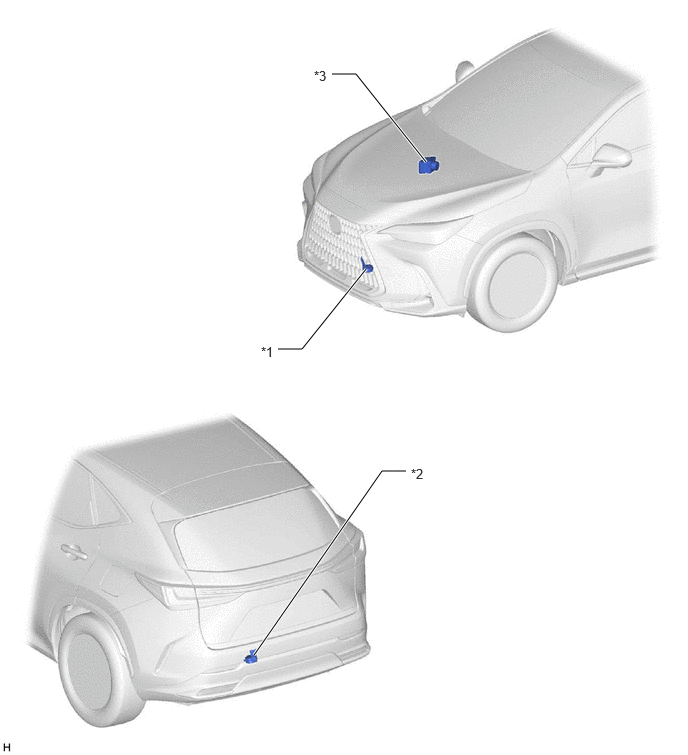

*1	FRONT VEHICLE APPROACHING SPEAKER ASSEMBLY (VEHICLE APPROACHING SPEAKER ASSEMBLY)	*2	REAR VEHICLE APPROACHING SPEAKER ASSEMBLY (NO. 2 VEHICLE APPROACHING SPEAKER ASSEMBLY)
*3	NO. 2 SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY)	-	-

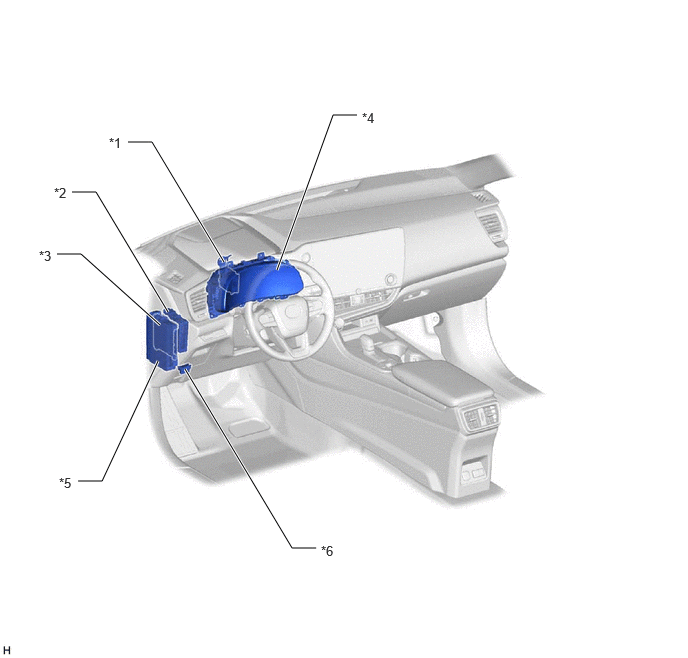

*1	VEHICLE APPROACHING SPEAKER CONTROLLER	*2	HYBRID VEHICLE CONTROL ECU
*3	MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU)	*4	COMBINATION METER ASSEMBLY
*5	POWER DISTRIBUTION BOX ASSEMBLY - ECU-B NO. 2 FUSE	*6	DLC3
