Parts Location [11/2021 - ]: Illustration
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

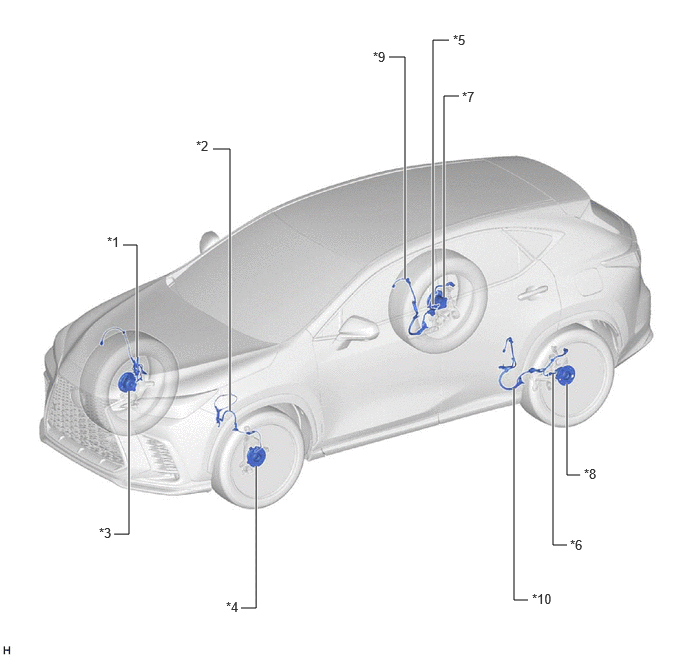

| *1 | FRONT SPEED SENSOR RH | *2 | FRONT SPEED SENSOR LH |
| *3 | FRONT AXLE HUB SUB-ASSEMBLY RH - FRONT SPEED SENSOR ROTOR RH |
*4 | FRONT AXLE HUB SUB-ASSEMBLY LH - FRONT SPEED SENSOR ROTOR LH |
| *5 | REAR SPEED SENSOR RH (REAR SKID CONTROL SENSOR RH) | *6 | REAR SPEED SENSOR LH (REAR SKID CONTROL SENSOR LH) |
| *7 | REAR AXLE HUB AND BEARING ASSEMBLY RH - REAR SPEED SENSOR ROTOR RH |
*8 | REAR AXLE HUB AND BEARING ASSEMBLY LH - REAR SPEED SENSOR ROTOR LH |
| *9 | NO. 1 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE RH |
*10 | NO. 2 PARKING BRAKE WIRE ASSEMBLY - SKID CONTROL SENSOR WIRE LH |

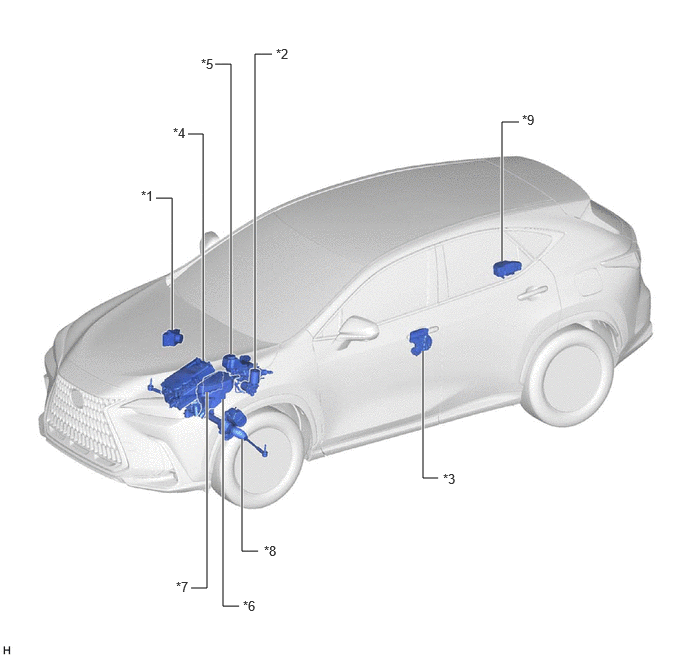

| *1 | BRAKE ACTUATOR ASSEMBLY - NO. 2 SKID CONTROL ECU |
*2 | BRAKE BOOSTER WITH ACCUMULATOR PUMP ASSEMBLY |
| *3 | FRONT DOOR LOCK WITH MOTOR ASSEMBLY (DRIVER SIDE) - E-LATCH ECU |
*4 | INVERTER WITH CONVERTER ASSEMBLY |
| *5 | BRAKE BOOSTER WITH MASTER CYLINDER ASSEMBLY - NO. 1 SKID CONTROL ECU - BRAKE ACTUATOR - BRAKE FLUID LEVEL WARNING SWITCH |
*6 | NO. 1 ENGINE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS MTR FUSE - ABS-MAIN FUSE (w/o Advanced Park (Remote Controlled)) - ABS NO. 1 FUSE - ABS NO. 2 FUSE - ABS NO. 3 FUSE (w/o Advanced Park (Remote Controlled)) - ECU-IGP NO. 2 FUSE |
| *7 | ECM | *8 | RACK AND PINION POWER STEERING GEAR ASSEMBLY - POWER STEERING ECU |
| *9 | NO. 1 LUGGAGE ROOM RELAY BLOCK AND NO. 1 JUNCTION BLOCK ASSEMBLY - ABS-MAIN FUSE (w/ Advanced Park (Remote Controlled)) - ABS NO. 3 FUSE (w/ Advanced Park (Remote Controlled)) |
- | - |
| *A | w/ Advanced Park (Remote Controlled) | - | - |

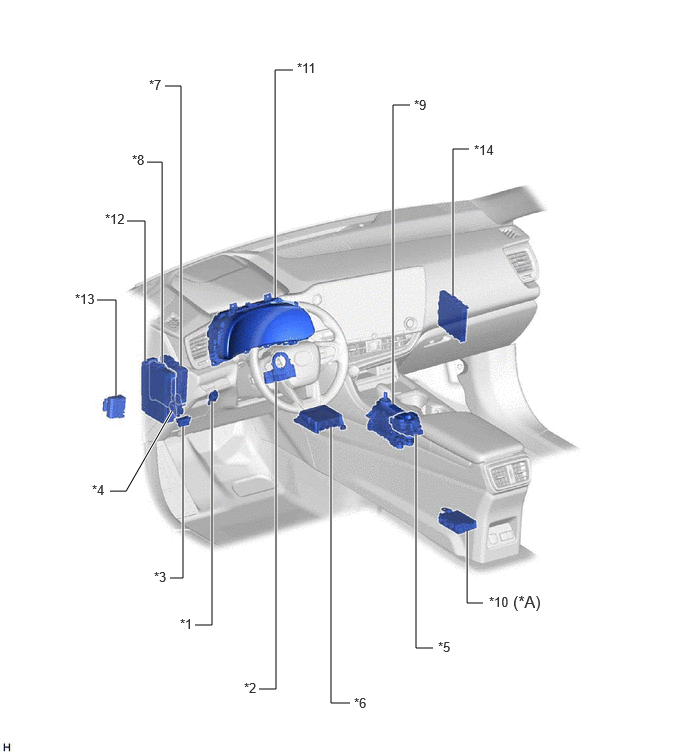

| *1 | STOP LIGHT SWITCH ASSEMBLY | *2 | STEERING ANGLE SENSOR |
| *3 | DLC3 | *4 | BRAKE PEDAL STROKE SENSOR ASSEMBLY |
| *5 | ELECTRIC PARKING BRAKE SWITCH ASSEMBLY - BRAKE HOLD SWITCH - VSC OFF SWITCH |
*6 | AIRBAG SENSOR ASSEMBLY - YAW RATE SENSOR - ACCELERATION SENSOR |
| *7 | HYBRID VEHICLE CONTROL ECU | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | TRANSMISSION FLOOR SHIFT ASSEMBLY - SHIFT CONTROL ECU |
*10 | SECOND POWER SUPPLY REMOTE PARKING CIRCUIT |
| *11 | COMBINATION METER ASSEMBLY - ABS WARNING LIGHT - BRAKE SYSTEM WARNING LIGHT (RED INDICATOR) - BRAKE SYSTEM WARNING LIGHT (YELLOW INDICATOR) - SLIP INDICATOR LIGHT - VSC OFF INDICATOR LIGHT - BRAKE HOLD STANDBY INDICATOR LIGHT - BRAKE HOLD OPERATED INDICATOR LIGHT - MULTI-INFORMATION DISPLAY (TRACTION CONTROL TURNED OFF) - METER BUZZER |
*12 | POWER DISTRIBUTION BOX ASSEMBLY - ECU-IGR NO. 4 FUSE - ECU-DCC NO. 1 FUSE - A/BAG-IGR FUSE |
| *13 | SEMICONDUCTOR POWER INTEGRATION ECU - STOP LIGHT CONTROL RELAY |
*14 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
