Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR BUMPER ASSEMBLY

    Refer to REMOVAL [11/2021 - ]

  2. REMOVE NO. 2 VEHICLE APPROACHING SPEAKER ASSEMBLY
    1. w/o Kick Sensor
      GTY1069060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

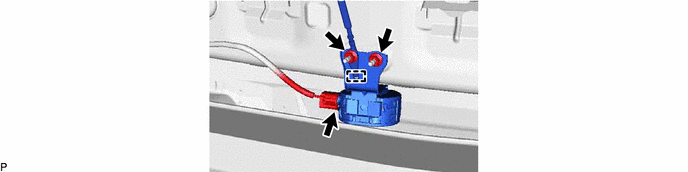

    2. w/ Kick Sensor
      GTY1073671Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
