Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during vehicle approaching speaker removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED (FOR HEV MODEL)
| Replaced Part or Performed Procedure | Necessary Procedures | Effect/Inoperative Function When Necessary Procedures are not Performed | Link |
|---|---|---|---|

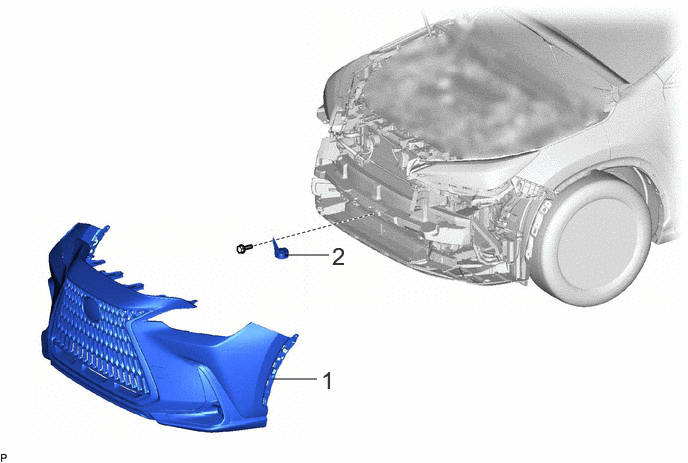

| Front bumper assembly*1 | Front television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ] |
| Advanced Park | Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ] | ||
Replacement or removal and installation of 2 or more parts:
|
Television camera view adjustment | Panoramic View Monitor System | Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ] |
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
