The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during camshaft removal/installation are shown below.
NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED
| Replaced Part or Performed Procedure | Necessary Procedure | Effect/Inoperative Function when Necessary Procedure not Performed | Link |
|---|---|---|---|
|
Inspection after repair |
|
Refer to INITIALIZATION [11/2021 - ] |
*1: Even when not replacing the part, it is necessary to perform the specified necessary procedures after installation.
NOTE:
- This procedure includes the removal of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]
- To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.
HINT:
When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.
LEARNING COMPLETES WHEN VEHICLE IS DRIVEN
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
| Lighting System (EXT) | Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more. | Refer to INITIALIZATION [11/2021 - ] |
| Front Camera System | ||
| Adaptive High Beam System |
LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY
| Effect/Inoperative Function when Necessary Procedure not Performed | Necessary Procedure | Link |
|---|---|---|
E-latch System
|
Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch. | Refer to INITIALIZATION [11/2021 - ] |
| Power Back Door System | Reset back door close position | Refer to INITIALIZATION [11/2021 - ] |
| Air Conditioning System | After the ignition switch is turned to ON, the servo motor standard position is recognized. | - |

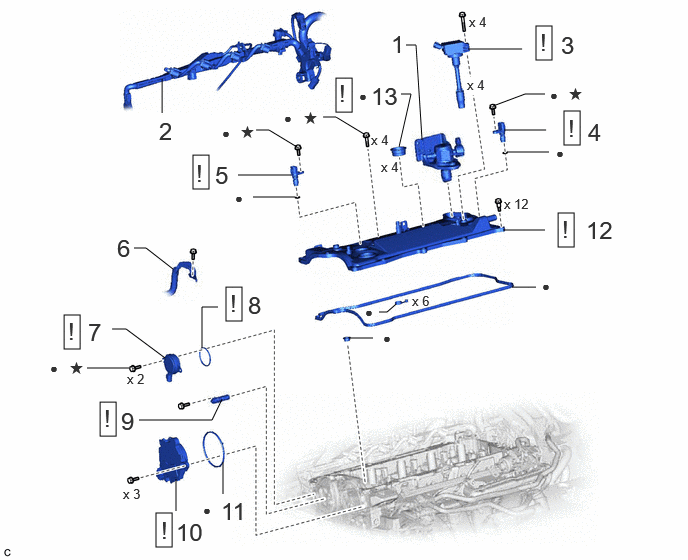

COMPONENTS (REMOVAL)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY | 23100X | - | - | - |
| 2 | ENGINE WIRE | 82121 | - | - | - |
| 3 | IGNITION COIL ASSEMBLY | 19500 | See step 3 | - | - |
| 4 | CAMSHAFT POSITION SENSOR (for Intake Side) | 11102A | See step 4 | - | - |
| 5 | CAMSHAFT POSITION SENSOR (for Exhaust Side) | 11102A | See step 5 | - | - |
| 6 | NO. 2 EARTH WIRE | 82286A | - | - | - |
| 7 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | 15370 | See step 7 | - | - |
| 8 | CAM TIMING OIL CONTROL SOLENOID O-RING | 15370A | See step 8 | - | - |
| 9 | CAMSHAFT TIMING VALVE ASSEMBLY | 135A0B | See step 9 | - | - |
| 10 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY | 13090D | See step 10 | - | - |
| 11 | CAM TIMING CONTROL MOTOR O-RING | 13090E | - | - | - |
| 12 | CYLINDER HEAD COVER SUB-ASSEMBLY | 11201 | See step 12 | - | - |
| 13 | SPARK PLUG TUBE GASKET | 11193 | See step 13 | - | - |
| • | Non-reusable part | * | Precoated part |

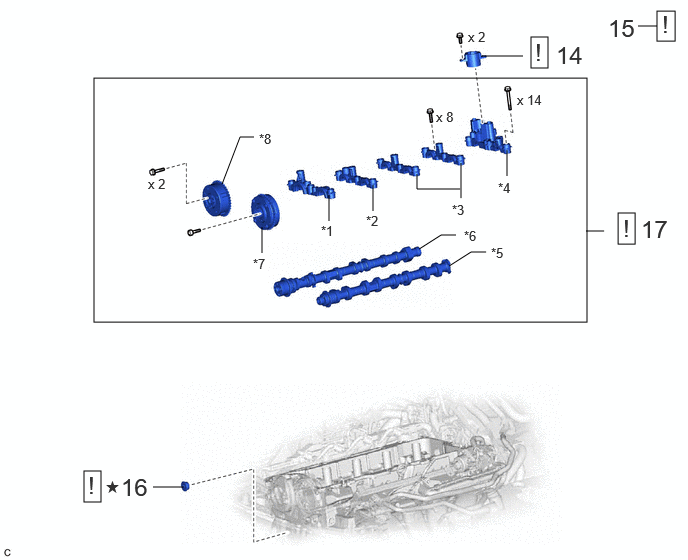

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 14 | FUEL PUMP LIFTER GUIDE | 23477 | See step 14 | - | - |
| 15 | SET NO. 1 CYLINDER TO TDC (COMPRESSION) | - | See step 15 | - | - |
| 16 | STRAIGHT SCREW PLUG | - | See step 16 | - | - |
| 17 | CAMSHAFT | - | See step 17 | - | - |
| *1 | NO. 1 CAMSHAFT BEARING CAP | *2 | NO. 2 CAMSHAFT BEARING CAP |
| *3 | NO. 3 CAMSHAFT BEARING CAP | *4 | NO. 4 CAMSHAFT BEARING CAP |
| *5 | CAMSHAFT | *6 | NO. 2 CAMSHAFT |
| *7 | CAMSHAFT TIMING GEAR ASSEMBLY | *8 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| * | Precoated part | - | - |
