This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.
Refer to PRECAUTION [11/2021 - ]
COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | CAMSHAFT | - | See step 1 | - | - |
| 2 | STRAIGHT SCREW PLUG | - | See step 2 | - | - |
| 3 | SET NO. 1 CYLINDER TO TDC (COMPRESSION) | - | See step 3 | - | - |
| 4 | FUEL PUMP LIFTER GUIDE | 23477 | See step 4 | - | - |

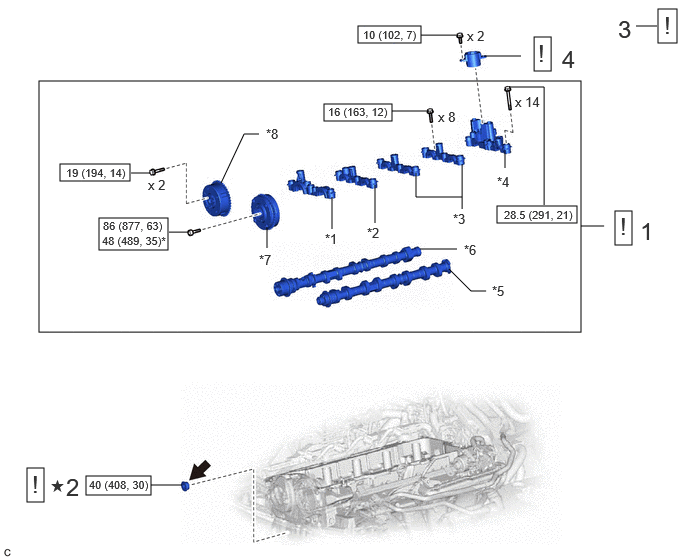

| *1 | NO. 1 CAMSHAFT BEARING CAP | *2 | NO. 2 CAMSHAFT BEARING CAP |
| *3 | NO. 3 CAMSHAFT BEARING CAP | *4 | NO. 4 CAMSHAFT BEARING CAP |
| *5 | CAMSHAFT | *6 | NO. 2 CAMSHAFT |
| *7 | CAMSHAFT TIMING GEAR ASSEMBLY | *8 | CAMSHAFT TIMING EXHAUST GEAR ASSEMBLY |
| N.m (kgf/cm, ft.lbf): Specified torque | * | For use with SST | |
| Adhesive 1324 | * | Precoated part |

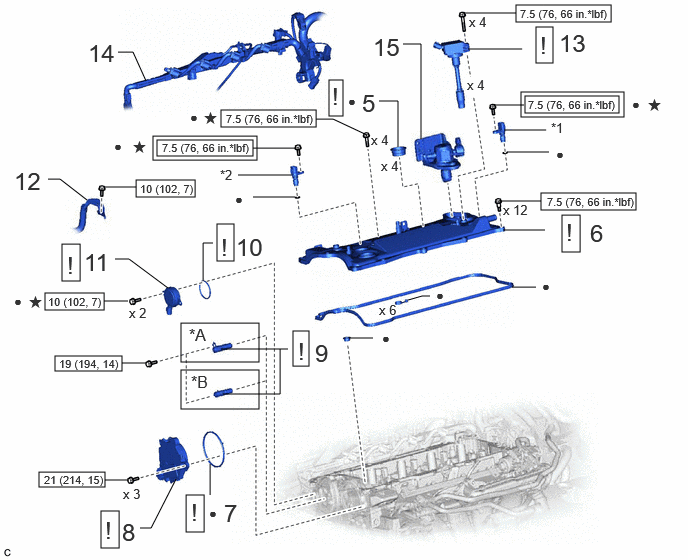

| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 5 | SPARK PLUG TUBE GASKET | 11193 | See step 5 | - | - |
| 6 | CYLINDER HEAD COVER SUB-ASSEMBLY | 11201 | See step 6 | - | - |
| 7 | CAM TIMING CONTROL MOTOR O-RING | 13090E | See step 7 | - | - |
| 8 | CAM TIMING CONTROL MOTOR WITH EDU ASSEMBLY | 13090D | See step 8 | - | - |
| 9 | CAMSHAFT TIMING VALVE ASSEMBLY | 135A0B | See step 9 | - | - |
| 10 | CAM TIMING OIL CONTROL SOLENOID O-RING | 15370A | See step 10 | - | - |
| 11 | CAM TIMING OIL CONTROL SOLENOID ASSEMBLY | 15370 | See step 11 | - | - |
| 12 | NO. 2 EARTH WIRE | 82286A | - | - | - |
| 13 | IGNITION COIL ASSEMBLY | 19500 | See step 13 | - | - |
| 14 | ENGINE WIRE | 82121 | - | - | - |
| 15 | FUEL (ENGINE ROOM SIDE) PUMP ASSEMBLY | 23100X | - | - | - |
| *A | Type A | *B | Type B |
| *1 | CAMSHAFT POSITION SENSOR (for Intake Side) | *2 | CAMSHAFT POSITION SENSOR (for Exhaust Side) |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | N.m (kgf/cm, ft.lbf): Specified torque | ||
| • | Non-reusable part | * | Precoated part |
