Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE HYBRID VEHICLE TRANSAXLE ASSEMBLY
Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]

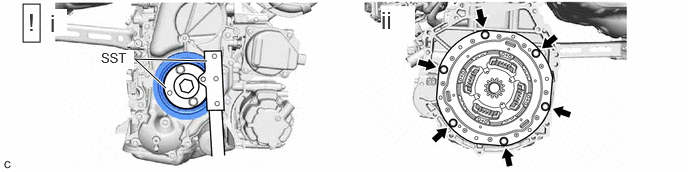

REMOVE TRANSMISSION INPUT DAMPER ASSEMBLY

NOTE:

Using height adjustment attachments and plate lift attachments, keep the engine assembly level.
To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly.
Using an engine sling device and engine lift, secure the engine assembly before servicing.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, hold the crankshaft pulley assembly.
- SST: 09213-54015
- SST: 09330-00021
Remove the 6 bolts and transmission input damper assembly from the flywheel sub-assembly.

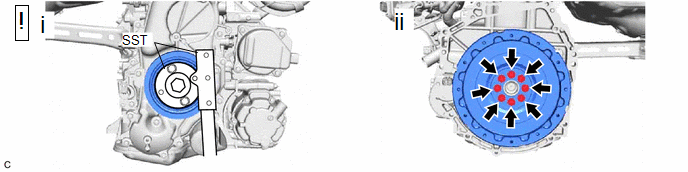

REMOVE FLYWHEEL SUB-ASSEMBLY

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using SST, hold the crankshaft pulley assembly.
- SST: 09213-54015
- SST: 09330-00021
Remove the 8 bolts and flywheel sub-assembly from the crankshaft.

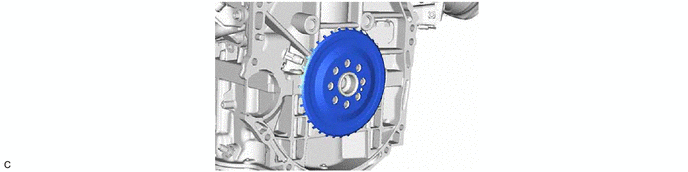

REMOVE NO. 1 CRANKSHAFT POSITION SENSOR PLATE

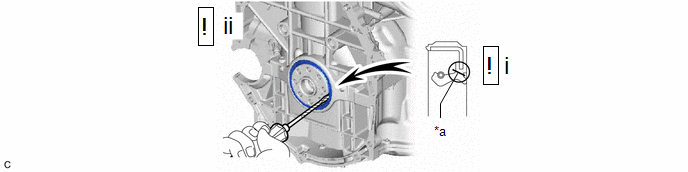

REMOVE REAR ENGINE OIL SEAL

Cut Position

Using a knife, cut off the lip of the rear engine oil seal.
Using a screwdriver with its tip wrapped with protective tape, pry out the rear engine oil seal.
NOTE:
Be careful not to damage the crankshaft.
