Installation [11/2021 - ]: Procedure

NOTE: Using height adjustment attachments and plate lift attachments, keep the engine assembly level. To prevent the No. 2 oil pan sub-assembly from deforming, do not place any attachments under the No. 2 oil pan sub-assembly of the engine assembly. Using an engine sling device and engine lift, secure the engine assembly before servicing.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   -0.9 to 1.1 mm

   -

   -

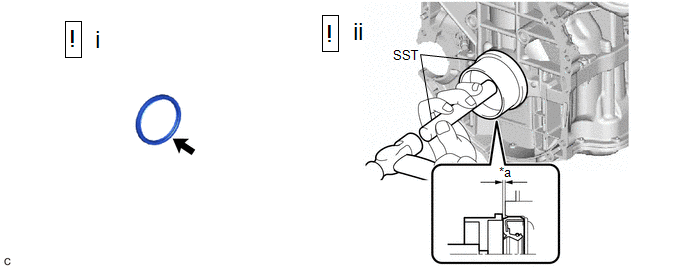

   1. Apply MP grease to the lip of a new rear engine oil seal.
      NOTE:

      • Keep the lip free from foreign matter.
      • Do not allow MP grease to contact the dust seal.
   2. Using SST and a hammer, tap in the rear engine oil seal.
      • SST: 09223-15030
      • SST: 09950-70010
        1. 09951-07150

      Standard Depth

      -0.9 to 1.1 mm (-0.0354 to 0.0433 in.) (From the edge of the cylinder block sub-assembly and stiffening crankcase assembly.)

      NOTE:

      Do not tap in the rear engine oil seal at an angle.

1. Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Pin

   *b

   Pin Hole

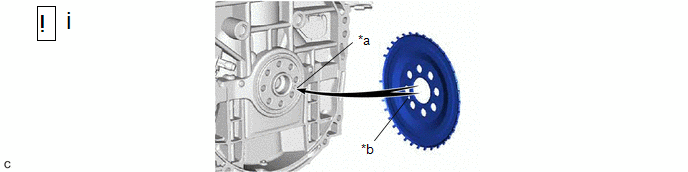

   1. Align the pin hole of the No. 1 crankshaft position sensor plate with the pin of the crankshaft, and install the No. 1 crankshaft position sensor plate.

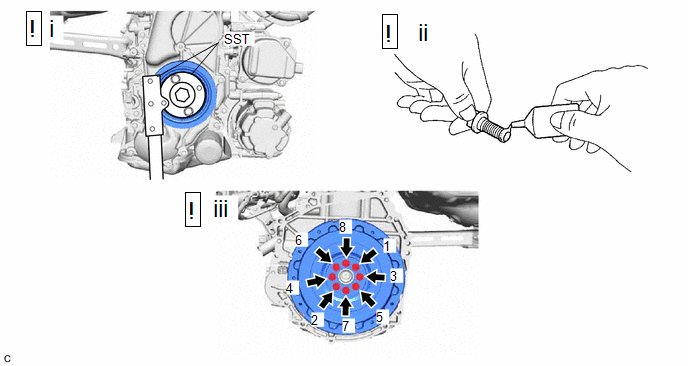

1. Fig 1: Flywheel Sub-Assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using SST, hold the crankshaft pulley assembly.
      • SST: 09213-54015
      • SST: 09330-00021
   2. Apply adhesive to 8 new bolts.

      Adhesive

      Toyota Genuine Adhesive 1324, Three Bond 1324 or equivalent

   3. Install the flywheel sub-assembly with the 8 bolts. Uniformly tighten the 8 bolts in the order shown in the illustration.

      Torque: 150 N.m (1530 kgf/cm, 111 ft.lbf)

      NOTE:

      Do not start the engine for at least 1 hour after installing the flywheel sub-assembly.

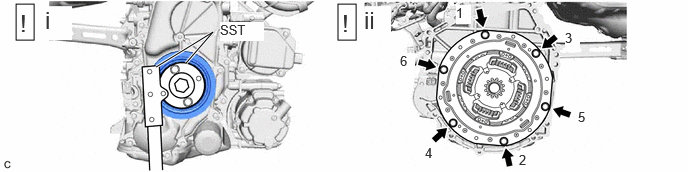

1. Fig 2: Transmission Input Damper Assembly Bolts Tightening Sequence

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   1. Using SST, hold the crankshaft pulley assembly.
      • SST: 09213-54015
      • SST: 09330-00021
   2. Install the transmission input damper assembly to the flywheel sub-assembly with 6 new bolts. Uniformly tighten the 6 bolts in the order shown in the illustration.

      Torque: 30 N.m (306 kgf/cm, 22 ft.lbf)

      NOTE:

      • Make sure that there is no oil on the transmission input damper assembly and flywheel sub-assembly.
      • Make sure to install the transmission input damper assembly in the correct direction.
      • Do not allow grease to contact the splines of the transmission input damper assembly and the input shaft.

Refer to INSTALLATION [11/2021 - 03/2024] , or refer to INSTALLATION [03/2024 - ]
