Removal [11/2021 - ]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [11/2021 - 03/2024] , or refer to REMOVAL [03/2024 - ]

  2. REMOVE CRANKSHAFT PULLEY ASSEMBLY
    Refer to PROCEDURE - Step 24 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 24 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 24 [03/2024 - ]
  3. REMOVE TIMING CHAIN COVER OIL SEAL

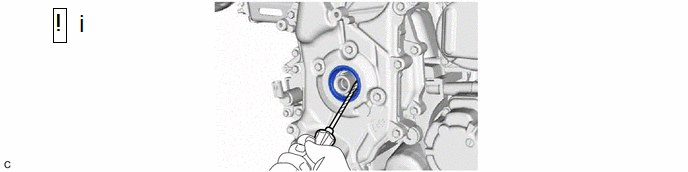

    1. GTY1075420Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain cover oil seal.
        NOTE:

        After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
