Installation [11/2021 - ]: Procedure
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
- INSTALL TIMING CHAIN COVER OIL SEAL

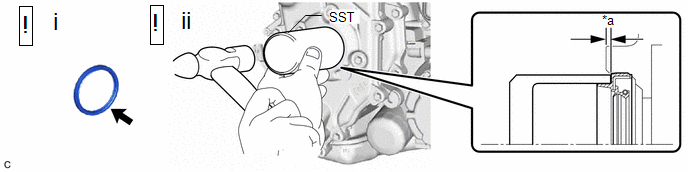

*a 0 to 2 mm - - - Apply MP grease to the lip of a new timing chain cover oil seal.NOTE:
- Keep the lip free from foreign matter.
- Do not allow MP grease to contact the dust seal.
- Using SST and a hammer, tap in the timing chain cover oil seal.
- SST: 09223-00010
Standard Depth
0 to 2 mm (0 to 0.0787 in.) (From the edge of the No. 2 timing chain cover assembly.)
NOTE:Do not tap in the timing chain cover oil seal at an angle.
- Apply MP grease to the lip of a new timing chain cover oil seal.
- INSTALL CRANKSHAFT PULLEY ASSEMBLY
Refer to PROCEDURE - Step 52 [11/2021 - 03/2022] , or refer to PROCEDURE - Step 52 [03/2022 - 03/2024] , or refer to PROCEDURE - Step 52 [03/2024 - ] - INSTALL ENGINE ASSEMBLY WITH TRANSAXLE
Refer to INSTALLATION [11/2021 - 03/2024] , or refer to INSTALLATION [03/2024 - ]
