Removal [11/2021 - 03/2024]: Procedure

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE ENGINE ASSEMBLY WITH TRANSAXLE

    Refer to REMOVAL [11/2021 - 03/2023] , or refer to REMOVAL [03/2023 - 03/2024]

  2. REMOVE V-RIBBED BELT
    Refer to PROCEDURE - Step 2
  3. REMOVE CRANKSHAFT PULLEY ASSEMBLY
    Refer to PROCEDURE - Step 23
  4. REMOVE TIMING CHAIN CASE OIL SEAL

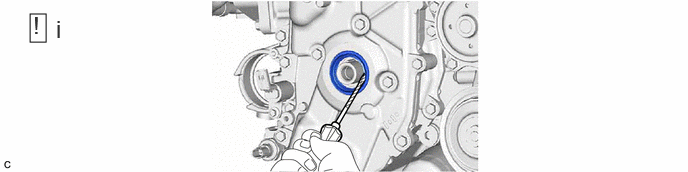

    1. GTY1078858Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a screwdriver with its tip wrapped with protective tape, pry out the timing chain case oil seal.
        NOTE:

        After removal, check the crankshaft for damage. If it is damaged, smooth the surface with 400-grit sandpaper.
