NOTE:

This procedure includes the installation of small-head bolts. Refer to Small-Head Bolts of Basic Repair Hint to identify the small-head bolts.

Refer to PRECAUTION [11/2021 - ]

COMPONENTS (INSTALLATION)

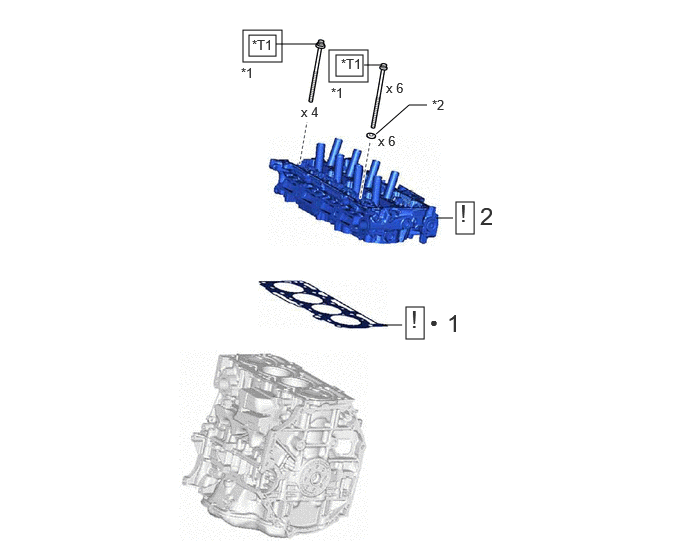

Fig 1: Cylinder Head Gasket Installation Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
1	CYLINDER HEAD GASKET	11115	See step 1	-	-
2	CYLINDER HEAD SUB-ASSEMBLY	11101	See step 2	-	-

*1	CYLINDER HEAD SET BOLT	*2	PLATE WASHER
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)	•	Non-reusable part
*T1	1st: 90 (918, 66) 2nd: Turn 90° 3rd: Turn 90°	-	-

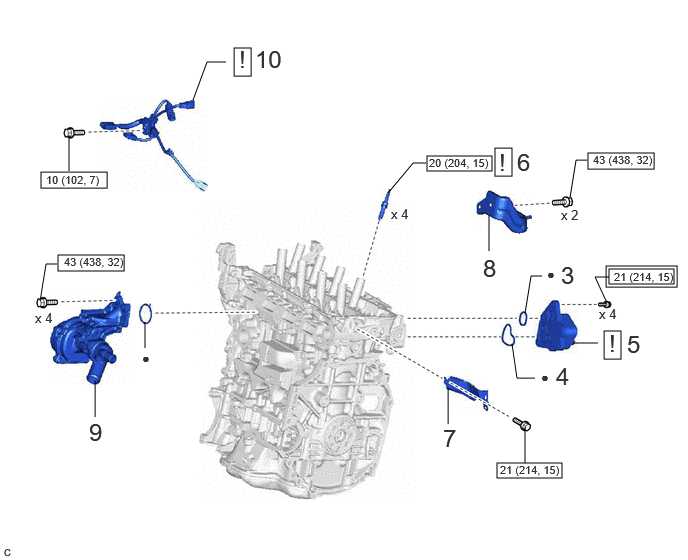

Fig 2: Cylinder Head Gasket Installation Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
3	OIL COOLER PIPE GASKET	16258B	-	-	-
4	OIL COOLER GASKET	15785	-	-	-
5	OIL COOLER ASSEMBLY	15710	See step 5	-	-
6	SPARK PLUG	19100P	See step 6	-	-
7	HEATER WATER HOSE BRACKET	87264	-	-	-
8	NO. 2 MANIFOLD STAY	17119	-	-	-
9	WATER INLET HOUSING	16323	-	-	-
10	WIRE HARNESS	-	See step 10	-	-

	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

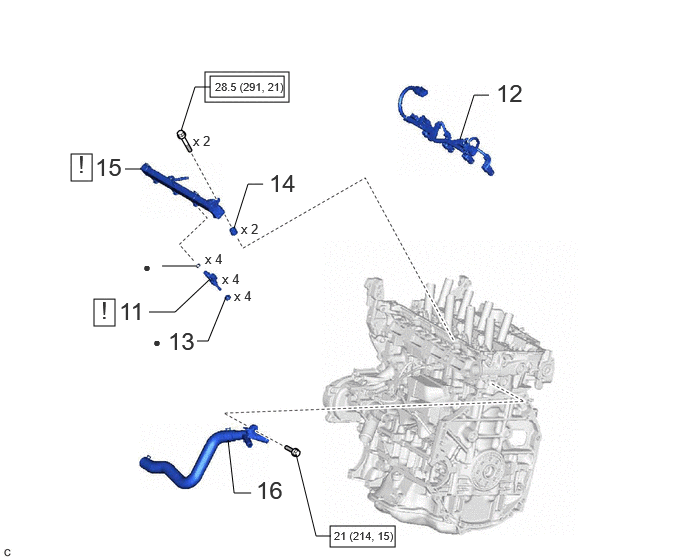

Fig 3: Cylinder Head Gasket Installation Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout - Procedure		Part Name Code
11	PORT FUEL INJECTOR ASSEMBLY	23250F	See step 11	-	-
12	NO. 5 ENGINE WIRE	82125N	-	-	-
13	INJECTOR VIBRATION INSULATOR	23291	-	-	-
14	FUEL DELIVERY SPACER	23891	-	-	-
15	FUEL DELIVERY PIPE	23814B	See step 15	-	-
16	NO. 2 WATER BY-PASS PIPE	16278	-	-	-

	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

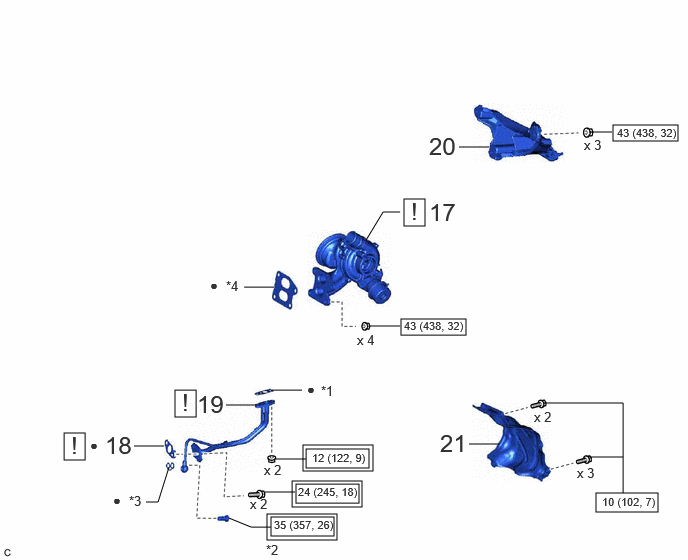

Fig 4: Cylinder Head Gasket Installation Components With Torque Specifications (4 Of 5)

Callout - Procedure		Part Name Code
17	TURBOCHARGER SUB-ASSEMBLY	17201	See step 17	-	-
18	NO. 1 TURBO OIL OUTLET GASKET	15472	See step 18	-	-
19	NO. 1 TURBO OIL PIPE	15481	See step 19	-	-
20	MANIFOLD STAY	17118	-	-	-
21	NO. 1 TURBO INSULATOR	17271	-	-	-

*1	TURBO OIL INLET GASKET	*2	OIL PIPE UNION BOLT
*3	GASKET	*4	EXHAUST MANIFOLD TO HEAD GASKET
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-

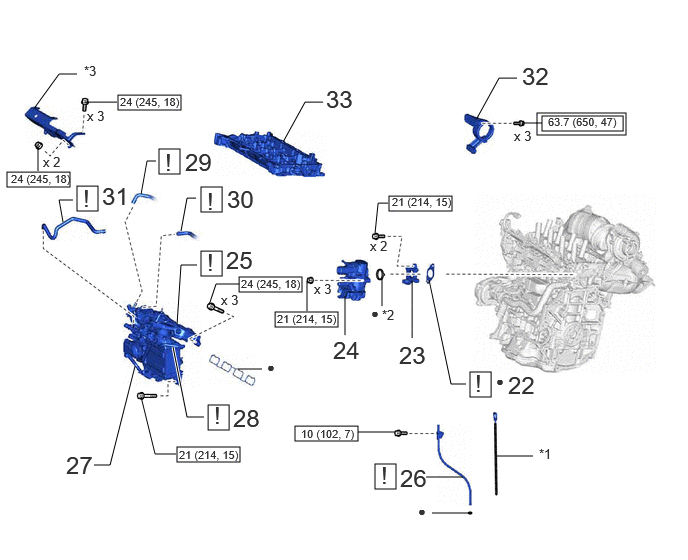

Fig 5: Cylinder Head Gasket Installation Components With Torque Specifications (5 Of 5)

Callout - Procedure		Part Name Code
22	WATER OUTLET GASKET	16341	See step 22	-	-
23	FRONT WATER BY-PASS JOINT	16355	-	-	-
24	WATER CONTROL VALVE	16342	-	-	-
25	INTAKE MANIFOLD WITH INTERCOOLER ASSEMBLY	-	See step 25	-	-
26	ENGINE OIL LEVEL DIPSTICK GUIDE	11452	See step 26	-	-
27	NO. 5 WATER BY-PASS HOSE	16282	-	-	-
28	NO. 4 WATER BY-PASS HOSE	16281N	See step 28	-	-
29	NO. 4 TURBO WATER HOSE	16287	See step 29	-	-
30	NO. 3 WATER BY-PASS HOSE	16267	See step 30	-	-
31	NO. 1 TURBO WATER HOSE	16284	See step 31	-	-
32	DRIVE SHAFT BEARING BRACKET	43457	-	-	-
33	CAMSHAFT HOUSING SUB-ASSEMBLY	11103	-	-	-

*1	ENGINE OIL LEVEL DIPSTICK	*2	GASKET
*3	FUEL DELIVERY GUARD	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf)		N.m (kgf/cm, ft.lbf): Specified torque
•	Non-reusable part	-	-
