System Diagram [03/2024 - ]

WARNING: This page is about a different car, the 2025 Lexus NX 350, 2024 Lexus NX 350, 2023 Lexus NX 350, and 2022 Lexus NX 350. However, it is still accessible from the selected car via links, so may be relevant.

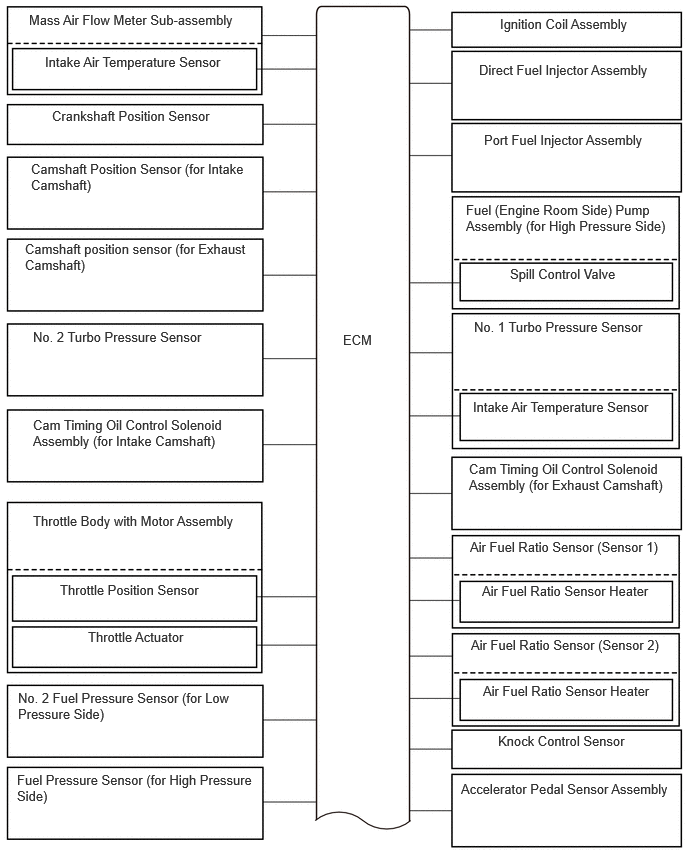

GTY1081423Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

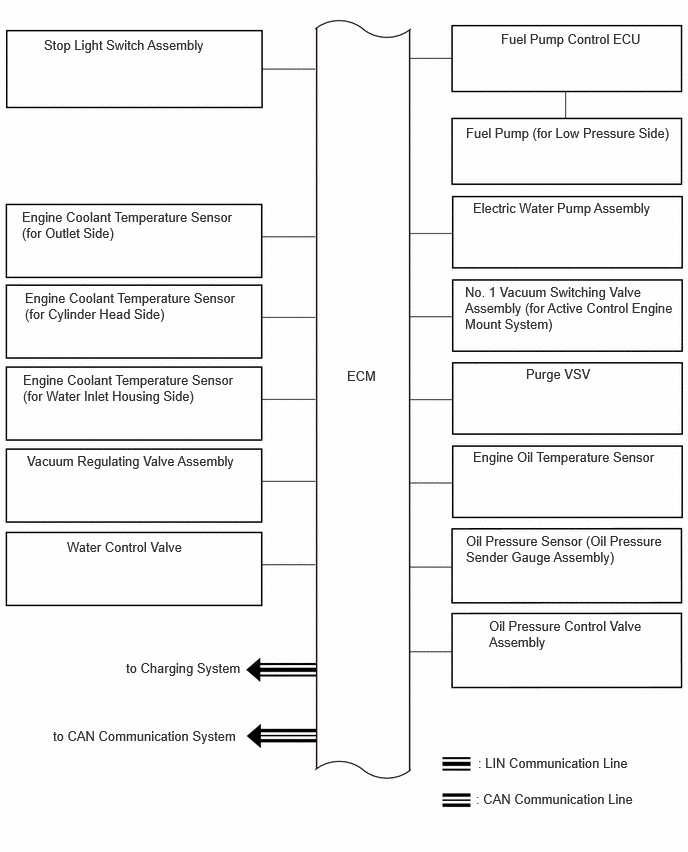

GTY1254277Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
GTY1081062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
