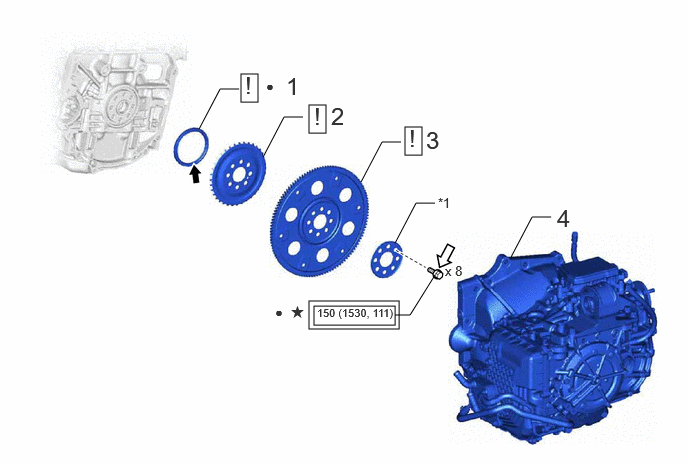

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | REAR ENGINE OIL SEAL | 11401L | See step 1 | - | - |
| 2 | NO. 1 CRANKSHAFT POSITION SENSOR PLATE | 19315 | See step 2 | - | - |
| 3 | DRIVE PLATE AND RING GEAR SUB-ASSEMBLY | 32101 | See step 3 | - | - |
| 4 | AUTOMATIC TRANSAXLE ASSEMBLY | 30500 | - | - | - |
| *1 | REAR DRIVE PLATE SPACER | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| MP grease | Adhesive 1324 | ||
| * | Precoated part | - | - |
