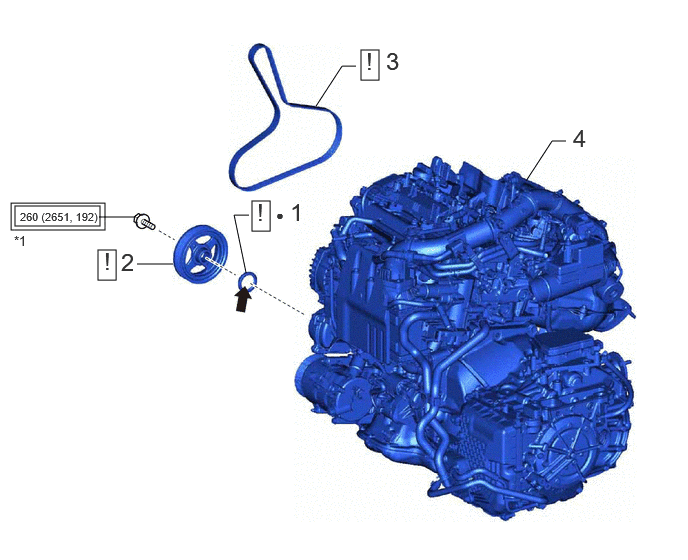

COMPONENTS (INSTALLATION)
| Callout - Procedure | Part Name Code | ||||
|---|---|---|---|---|---|
| 1 | TIMING CHAIN CASE OIL SEAL | 11301C | See step 1 | - | - |
| 2 | CRANKSHAFT PULLEY ASSEMBLY | 13470 | See step 2 | - | - |
| 3 | V-RIBBED BELT | 16361A | See step 3 | - | - |
| 4 | ENGINE ASSEMBLY WITH TRANSAXLE | - | - | - | - |
| *1 | CRANKSHAFT PULLEY BOLT | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N.m (kgf/cm, ft.lbf) | • | Non-reusable part | |
| MP grease | - | - |
