System Diagram [11/2021 - 03/2024]

WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.

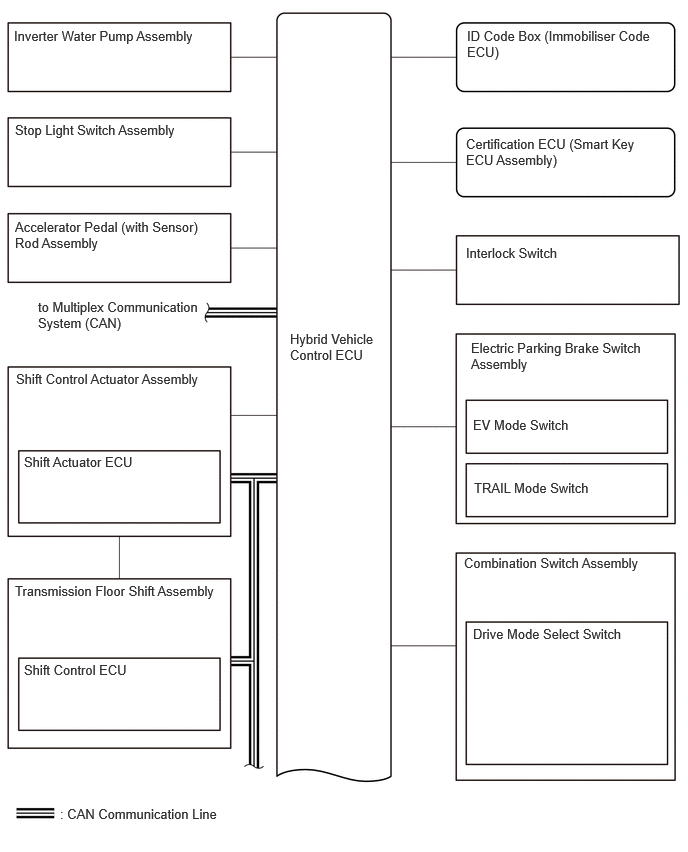

GTY1078569Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

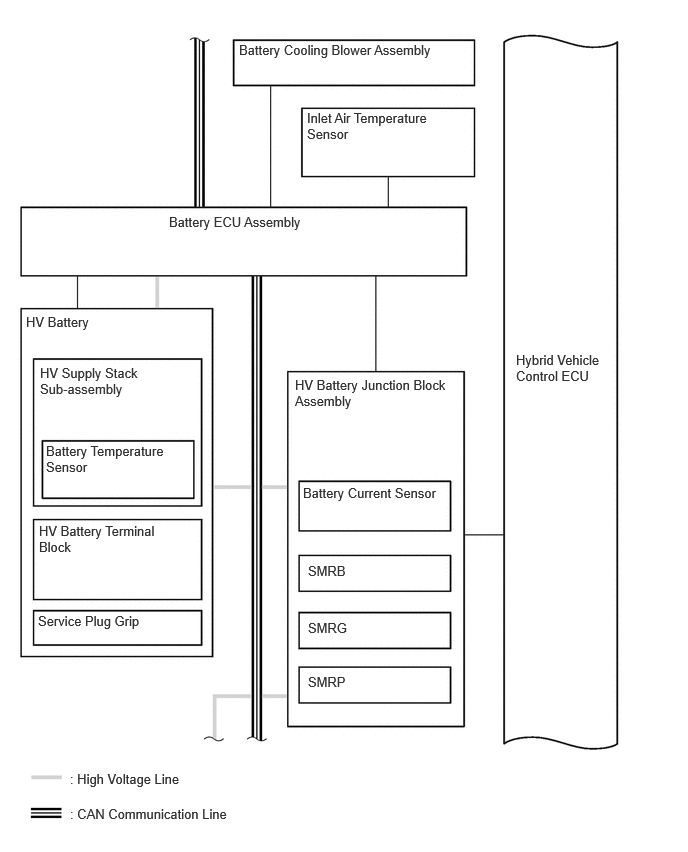

GTY1074540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

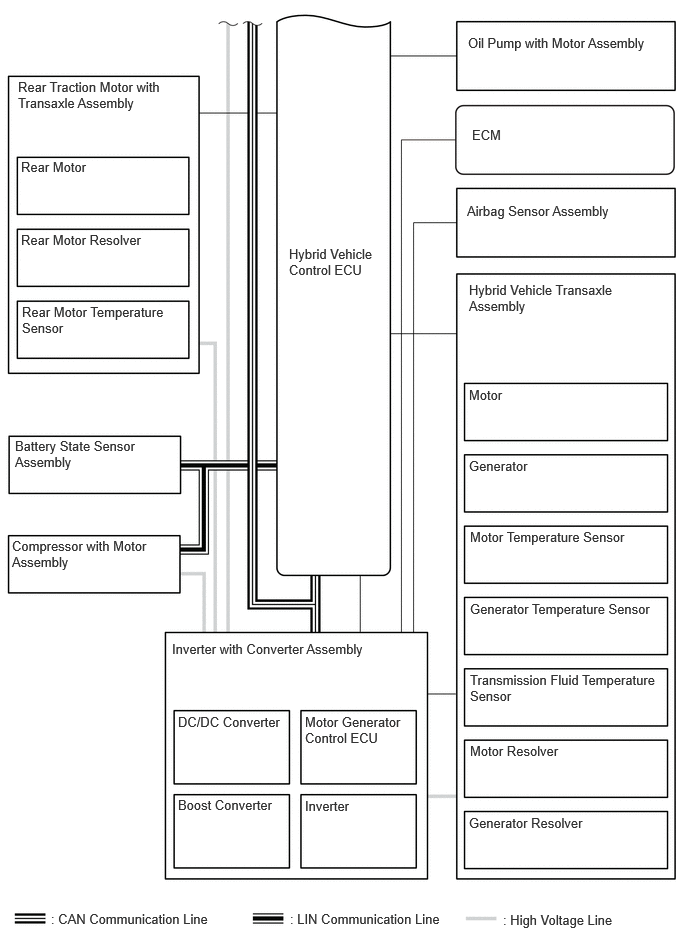

GTY1074181Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
