Caution / Notice / Hint
WARNING: This page is about a different car, the 2025 Lexus NX 350h, 2024 Lexus NX 350h, 2023 Lexus NX 350h, and 2022 Lexus NX 350h. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
To avoid the danger of being burned, do not remove the reserve tank cap or drain cock plug while the coolant (for inverter) is still hot. Pressurized, hot coolant (for inverter) and steam may be released and cause serious burns.
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

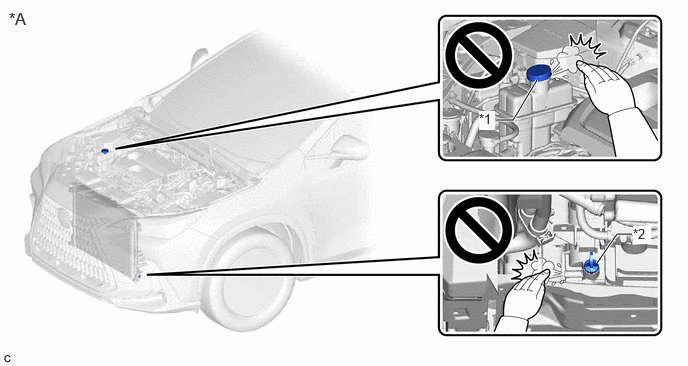

| *A |
for Type A |
- |
- |
| *1 |
Reserve Tank Cap |
*2 |
Drain Cock Plug |
 Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
|

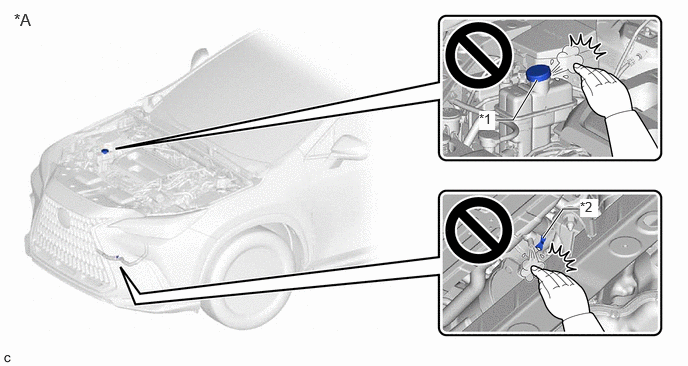

| *A |
for Type B |
- |
- |
| *1 |
Reserve Tank Cap |
*2 |
Drain Cock Plug |
