The necessary procedures (adjustment, calibration, initialization or registration) that must be performed after parts are removed and installed, or replaced during rear traction motor with transaxle assembly removal/installation are shown below.

NECESSARY PROCEDURES AFTER PARTS REMOVED/INSTALLED/REPLACED

Replaced Part or Performed Procedure	Necessary Procedure	Effect/Inoperative Function when Necessary Procedure not Performed	Link
Gas leak from exhaust system is repaired	Inspection after repair	Poor idle, etc. Engine start function, etc.	Refer to INITIALIZATION [11/2021 - ]
Replacement of rear traction motor with transaxle assembly	Resolver learning Initialize resolver	DTCs are stored Slight vibration at a vehicle speed of 5 km/h (3 mph) or less Shock or vibration during acceleration	Refer to UTILITY [11/2021 - ]
Tires	Initialization12 Tire Position Identification12	Tire Pressure Warning System	Refer to Procedures Necessary When Replacing Parts (for Tire Pressure Warning System) table below Refer to WORK PROCEDURE [11/2021 - 03/2023] , or refer to WORK PROCEDURE [03/2023 - 03/2024] , or refer to WORK PROCEDURE [03/2024 - ]
	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [11/2021 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
Wheel alignment adjustment	Perform "Calibration"	DTCs are stored ABS warning light illuminates Brake system warning light (yellow indicator) illuminates Slip indicator light illuminates Electronically controlled brake system does not operate correctly	Refer to RESET MEMORY / CALIBRATION [11/2021 - ]
Suspension parts	Rear television camera assembly optical axis (Back camera position setting)	Parking Assist Monitor System	Refer to CALIBRATION [11/2021 - ]
	Parking assist ECU initialization	Panoramic View Monitor System	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
	Parking assist ECU initialization	Advanced Park	Refer to CALIBRATION [11/2021 - 03/2024] , or refer to CALIBRATION [03/2024 - ]
	Perform headlight ECU sub-assembly LH initialization	Lighting System (w/ Automatic Headlight Beam Level Control System)	Refer to INITIALIZATION [11/2021 - 03/2022] , or refer to INITIALIZATION [03/2022 - ]
Replacement of rear height control sensor sub-assembly LH	Perform headlight ECU sub-assembly LH initialization	Lighting system (w/ Automatic Headlight Beam Level Control System)	Refer to INITIALIZATION [11/2021 - 03/2022] , or refer to INITIALIZATION [03/2022 - ]

*1: Also necessary after performing a tire rotation.*2: It is not necessary to perform this procedure if the tire pressure warning valve and transmitters are installed to the same location.

WARNING:

Orange wire harnesses and connectors indicate high-voltage circuits. To prevent electric shock, always follow the procedure described in the repair information.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to PRECAUTION [11/2021 - ]

To prevent electric shock, wear insulated gloves when working on wire harnesses and components of the high voltage system.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

To prevent burns, do not touch the engine, exhaust pipe or other high temperature components while the engine is hot.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE:

To prevent the key from being locked in the vehicle, make sure to enter e-latch inspection mode and enable the manual release handle before disconnecting the cable from the negative (-) auxiliary battery terminal.

Refer to INSPECTION MODE PROCEDURE [11/2021 - ]

HINT:

When the cable is disconnected / reconnected to the auxiliary battery terminal, systems temporarily stop operating. However, each system has a function that completes learning the first time the system is used.

LEARNING COMPLETES WHEN VEHICLE IS DRIVEN

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
Lighting System (EXT)	Drive the vehicle straight ahead at 35 km/h (22 mph) or more for 5 seconds or more.	Refer to INITIALIZATION [11/2021 - ]
Front Camera System
Adaptive High Beam System

LEARNING COMPLETES WHEN VEHICLE IS OPERATED NORMALLY

Effect/Inoperative Function when Necessary Procedure not Performed	Necessary Procedure	Link
E-latch System Back door opener	Perform door unlock operation with door control switch or electrical key transmitter sub-assembly switch.	Refer to INITIALIZATION [11/2021 - ]
Power Back Door System	Reset back door close position	Refer to INITIALIZATION [11/2021 - ]
Air Conditioning System	After the ignition switch is turned to ON, the servo motor standard position is recognized.	-

COMPONENTS (REMOVAL)

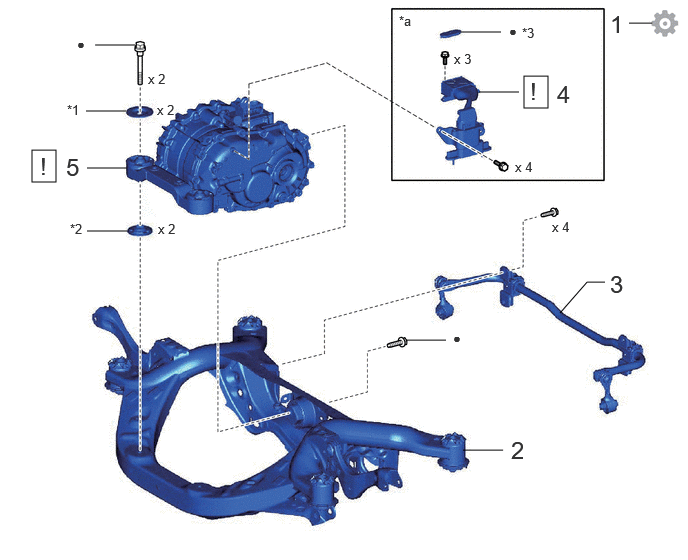

Fig 1: Rear Traction Motor Removal Components (1 Of 2)

Callout - Procedure		Part Name Code
1	PERFORM RESOLVER INITIALIZATION	-	-	-	See step 1
2	REAR SUSPENSION MEMBER SUB-ASSEMBLY	51206A	-	-	-
3	REAR STABILIZER BAR	48812	-	-	-
4	REAR TRACTION MOTOR CABLE	G1149	See step 4	-	-
5	REAR TRACTION MOTOR WITH TRANSAXLE ASSEMBLY	G1050	See step 5	-	-

*1	UPPER DIFFERENTIAL MOUNT STOPPER	*2	LOWER DIFFERENTIAL MOUNT STOPPER
*3	MOTOR CABLE TERMINAL CAP	-	-
*a	Unnecessary to remove the rear traction motor cable unless inspection or replacement.	-	-
•	Non-reusable part	-	-

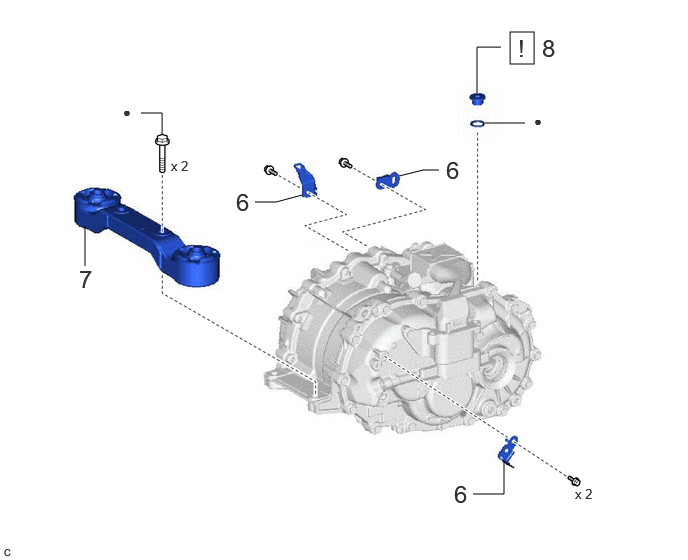

Fig 2: Rear Traction Motor Removal Components (2 Of 2)

Callout - Procedure		Part Name Code
6	WIRE HARNESS CLAMP BRACKET	-	-	-	-
7	FRONT DIFFERENTIAL SUPPORT ASSEMBLY	52380F	-	-	-
8	REAR TRACTION MOTOR FILLER PLUG	G1050C	See step 8	-	-

•

Non-reusable part
