DTC P0011-00: Camshaft Position "A" - Timing Over-Advanced or System Performance Bank 1; DTC P0012-00: Camshaft Position "A" - Timing Over-Retarded Bank 1 [03/2023 - 03/2024]: Procedure

1. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTC P0011-00 or P0012-00 is output	A
   DTC P0011-00 or P0012-00 and other DTCs are output	B

   HINT:

   If any DTCs other than P0011-00 or P0012-00 are output, troubleshoot those DTCs first.

Result:

B

GO TO DTC CHART. Refer to  DIAGNOSTIC TROUBLE CODE CHART [03/2023 - 03/2024]

Result:

A

See step  2

1. Start the engine.
2. Read the Data List while performing the Active Test with the engine idling.

   Powertrain > Engine > Active Test

   Active Test Display
   Control the Intake VVT OCV Duty Ratio Bank 1

   Data List Display
   Intake VVT Change Angle Bank 1

   OK

   GTS Operation	Data List (Intake VVT Change Angle Bank 1)
   -100% to 100%	Varies by 70 DegFR or more

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  4

Result:

OK

See step  3

1. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

2. Turn the ignition switch off and wait for at least 30 seconds.
3. Start the engine and warm it up.
4. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
5. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTC P0011-00 or P0012-00 is output	B

   HINT:

   DTC P0011-00 or P0012-00 may be stored when foreign matter in the engine oil is caught in some parts of the system. The DTC will remain stored even if the system returns to normal after a short time. That foreign matter may then be captured by the oil filter.

Result:

A

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [11/2021 - ]

Result:

B

See step  4

1. Inspect the cam timing oil control solenoid assembly (for intake side).

   Refer to INSPECTION [11/2021 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  9

Result:

OK

See step  5

1. Inspect the intake camshaft timing gear bolt assembly.

   Refer to ON-VEHICLE INSPECTION [11/2021 - ]

   Result

   Proceed to
   OK
   NG

Result:

NG

See step  11

Result:

OK

See step  6

1. Remove the cylinder head cover sub-assembly.

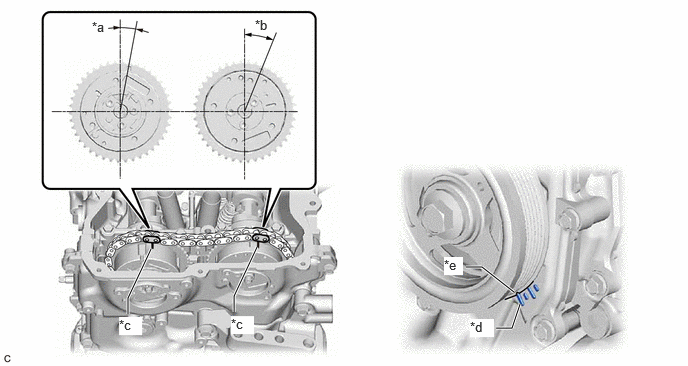

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	10.6°	*b	21.91°
   *c	Timing Mark	*d	"0" Timing Mark
   *e	Groove	-	-

2. Turn the crankshaft pulley and align its groove with the "0" timing mark of the timing chain cover.
3. Check that the timing marks of the camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.

   HINT:

   If the timing marks are not at the positions shown, turn the crankshaft one revolution clockwise.

   OK

   Timing marks on camshaft timing gear assembly and camshaft timing exhaust gear assembly are at the positions shown in the illustration.

   HINT:

   If the result is not as specified, check for mechanical malfunctions that may have affected the valve timing, such as a jumped tooth or stretching of the timing chain.

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  13

Result:

NG

See step  7

1. Check for mechanical malfunctions that affect the valve timing, such as a jumped tooth or stretching of the timing chain.

   Result

   Proceed to
   OK
   NG

Result:

NG

REPAIR OR REPLACE MALFUNCTIONING PARTS, COMPONENT AND AREA

Result:

OK

See step  8

1. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

2. Turn the ignition switch off and wait for at least 30 seconds.
3. Start the engine and warm it up.
4. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
5. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTC P0011-00 or P0012-00 is output	B

Result:

A

CHECK FOR INTERMITTENT PROBLEMS. Refer to  CHECK FOR INTERMITTENT PROBLEMS [11/2021 - ]

Result:

B

REPLACE ECM. Refer to  REMOVAL [11/2021 - ]

1. Replace the cam timing oil control solenoid assembly (for intake side).

   Refer to REMOVAL [11/2021 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  10

1. Inspect the intake camshaft timing gear bolt assembly.

   Refer to ON-VEHICLE INSPECTION [11/2021 - ]

   Result

   Proceed to
   OK
   NG

Result:

OK

See step  12

Result:

NG

See step  11

1. Replace the intake camshaft timing gear bolt assembly.

   Refer to REMOVAL [11/2021 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  12

1. Start the engine.
2. Read the Data List while performing the Active Test with the engine idling.

   Powertrain > Engine > Active Test

   Active Test Display
   Control the Intake VVT OCV Duty Ratio Bank 1

   Data List Display
   Intake VVT Change Angle Bank 1

   OK

   GTS Operation	Data List (Intake VVT Change Angle Bank 1)
   -100% to 100%	Varies by 70 DegFR or more

   Result

   Proceed to
   OK
   NG

Result:

OK

END

Result:

NG

See step  13

1. Replace the camshaft timing gear assembly.

   Refer to REMOVAL [11/2021 - 03/2024]

   HINT:

   Perform "Inspection After Repair" after replacing the camshaft timing gear assembly.

   Refer to INITIALIZATION [11/2021 - ]

   Result

   Proceed to
   NEXT

Result:

NEXT

See step  14

1. Clear the DTCs.

   Powertrain > Engine > Clear DTCs

2. Turn the ignition switch off and wait for at least 30 seconds.
3. Start the engine and warm it up.
4. Drive the vehicle in accordance with the driving pattern described in Confirmation Driving Pattern.
5. Read the DTCs.

   Powertrain > Engine > Trouble Codes

   Result

   Result	Proceed to
   DTCs are not output	A
   DTC P0011-00 or P0012-00 is output	B

Result:

A

END

Result:

B

REPLACE ECM. Refer to  REMOVAL [11/2021 - ]
