Removal [11/2021 - ]: Procedure

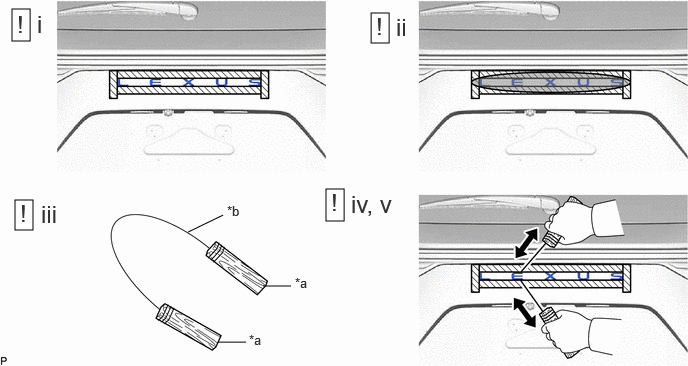

- REMOVE NO. 4 BACK DOOR NAME PLATE
*a Wooden Blocks *b Piano Wire Heated Part Protective Tape - Apply protective tape around the No. 4 back door name plate as shown in the illustration.
- Using a heat light, heat the back door panel and No. 4 back door name plate.WARNING:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the back door panel or emblem excessively.
Standard
Item Temperature Back Door Panel 20 to 30 °C (68 to 86 °F) - Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
- Insert a piano wire between the back door panel and No. 4 back door name plate.
- Pull the piano wire and cut the double-sided tape that holds the No. 4 back door name plate to the back door panel.NOTE:
Be careful not to damage the back door panel.

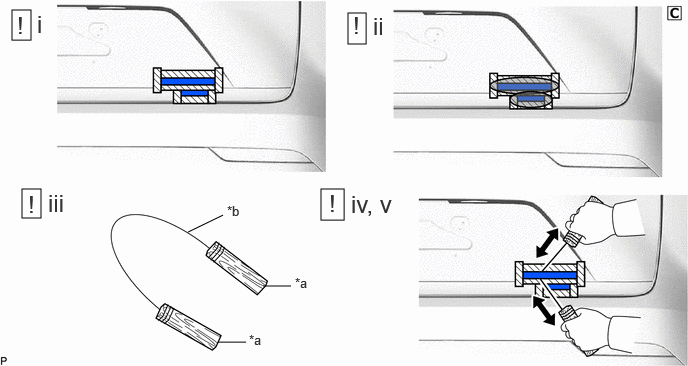

- REMOVE NO. 3 BACK DOOR NAME PLATE
*a Wooden Blocks *b Piano Wire Heated Part Protective Tape - Apply protective tape around the No. 3 back door name plate as shown in the illustration.
- Using a heat light, heat the back door panel and No. 3 back door name plate.WARNING:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the back door panel or emblem excessively.
Standard
Item Temperature Back Door Panel 40 to 60°C (104 to 140°F) - Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
- Insert a piano wire between the back door panel and No. 3 back door name plate.
- Pull the piano wire and cut the double-sided tape that holds the No. 3 back door name plate to the back door panel.NOTE:
Be careful not to damage the back door panel.

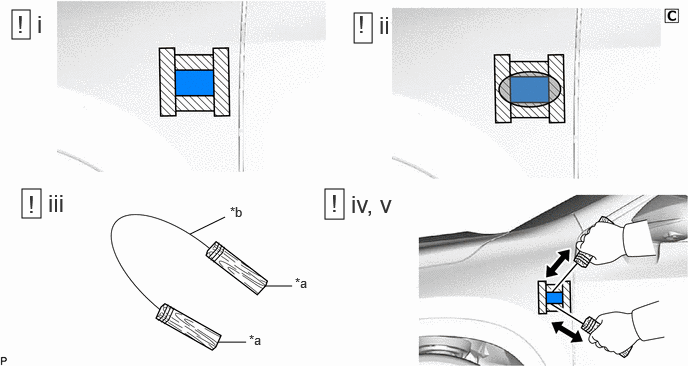

- REMOVE FRONT NO. 2 FENDER NAME PLATE (for Sport Package)
*a Wooden Blocks *b Piano Wire Heated Part Protective Tape - Apply protective tape around the front No. 2 fender name plate as shown in the illustration.
- Using a heat light, heat the front fender panel and front No. 2 fender name plate as.WARNING:
- Do not touch the heat light and heated parts, touching the heat light may result in burns.
- Touching heated parts for a long time may result in burns.
*a Heated Part *b Heat Light NOTE:Do not heat the front fender panel or emblem excessively.
Standard
Item Temperature Front Fender Panel 40 to 60°C (104 to 140°F) - Tie objects that can serve as handles (for example, wooden blocks) to both wire ends.
- Insert a piano wire between the front fender panel and front No. 2 fender name plate.
- Pull the piano wire and cut the double-sided tape that holds the front No. 2 fender name plate to the front fender panel.NOTE:
Be careful not to damage the front fender panel.
- REMOVE FRONT NO. 1 FENDER NAME PLATE (for Sport Package)
- Use the same procedure as for the front No. 2 fender name plate.
