DTC B1508-19: Turn Signal/Hazard Flasher Circuit Current Above Threshold [03/2022 - ]: Wiring Diagram

except TMMC Made

GTY1072579

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1070697

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1072973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

GTY1070069

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

for TMMC Made

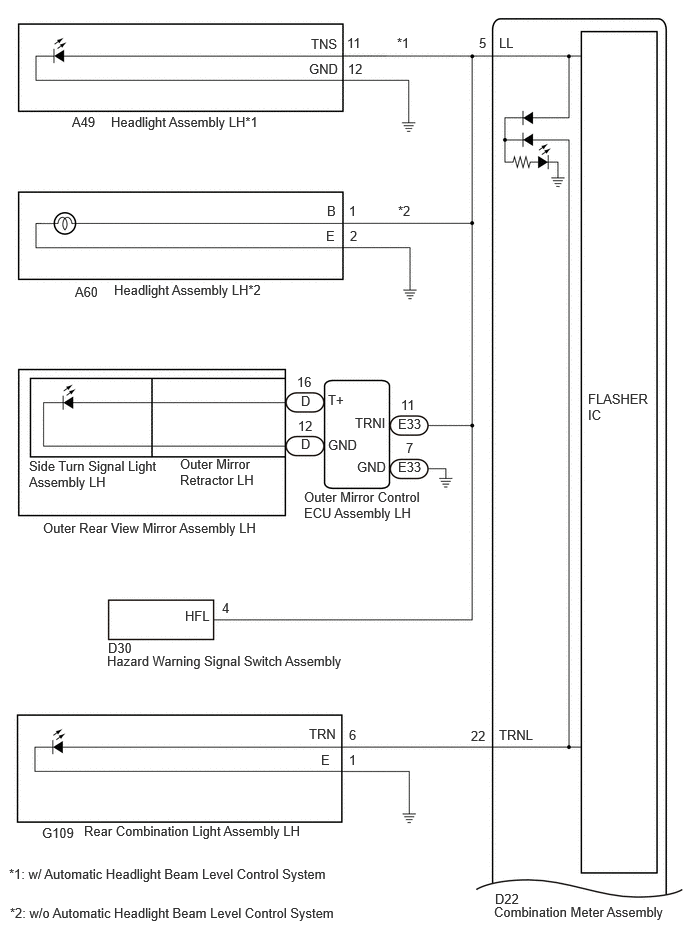

GTY1135336

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

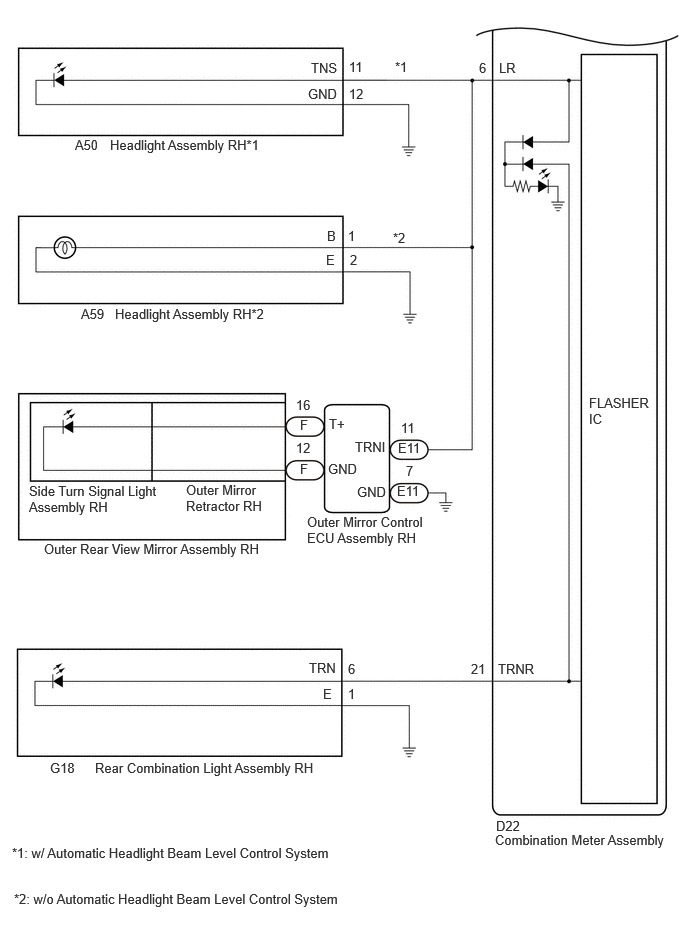

GTY1135494

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
