Installation [12/2021 - ]: Procedure

  1. INSTALL AIR BY-PASS VALVE ASSEMBLY
    1. for Bank 2:

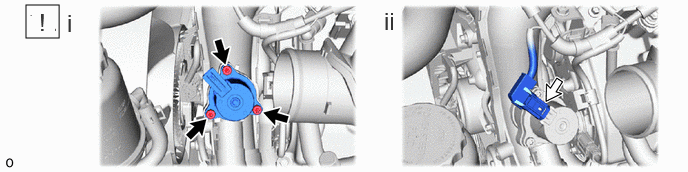

      GTY1074645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, install the air by-pass valve assembly with the 3 bolts.

        Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      2. Connect the connector.
    2. for Bank 1:

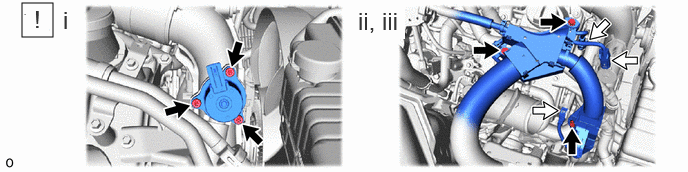

      GTY1074177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a T30 "TORX" socket wrench, install the air by-pass valve assembly with the 3 bolts.

        Torque: 8.5 N.m (87 kgf/cm, 75 in.lbf)

      2. Connect the wire harness with the 3 bolts.

        Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)

      3. Connect the 3 connectors.
  2. INSTALL AIR CLEANER ASSEMBLY LH WITH AIR CLEANER HOSE ASSEMBLY LH

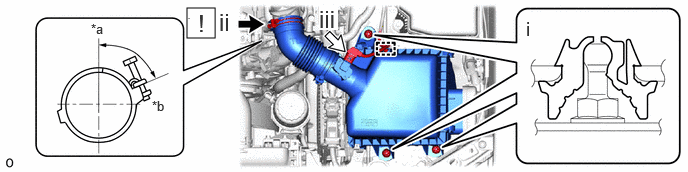

    1. GTY1074454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper Side *b RH Side
      1. Attach the 3 grommets to install the air cleaner assembly LH with air cleaner hose assembly LH.
      2. Tighten the hose clamp in the position shown in the illustration.

        Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

        NOTE:

        Make sure that the clamp bolt of the hose clamp are within the area shown in the illustration.

      3. Attach the clamp and connect the connector.
  3. INSTALL AIR CLEANER ASSEMBLY RH WITH AIR CLEANER HOSE ASSEMBLY RH

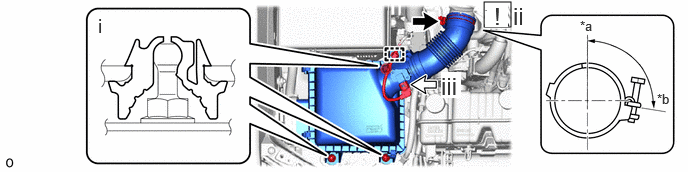

    1. GTY1074124Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Upper Side *b RH Side
      1. Attach the 3 grommets to install the air cleaner assembly RH with air cleaner hose assembly RH.
      2. Tighten the hose clamp in the position shown in the illustration.

        Torque: 4.0 N.m (41 kgf/cm, 35 in.lbf)

        NOTE:

        Make sure that the clamp bolt of the hose clamp are within the area shown in the illustration.

      3. Attach the clamp and connect the connector.
  4. INSTALL V-BANK COVER SUB-ASSEMBLY
