Removal [12/2021 - ]: Procedure

  1. REMOVE CONVERTER WITH CATALYST ASSEMBLY RH

    Refer to REMOVAL [12/2021 - ]

  2. REMOVE OIL PRESSURE SENDER GAUGE ASSEMBLY
    WARNING:

    To prevent burns, do not remove the oil pressure sender gauge assembly while the engine is hot.

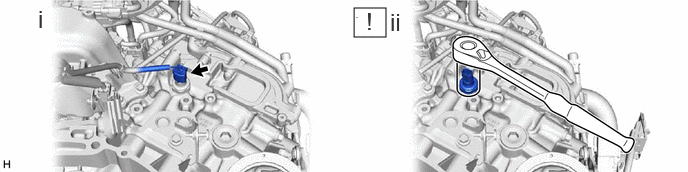

    1. GTY1074440Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the oil pressure sender gauge assembly connector.
      2. Using a 27 mm deep socket wrench, remove the oil pressure sender gauge assembly.
        NOTE:

        If the oil pressure sender gauge assembly is dropped or subjected to a strong impact, replace it with a new one.
