Removal [12/2021 - ]: Procedure

  1. REMOVE NO. 1 ENGINE UNDER COVER ASSEMBLY
    See step  1
  2. REMOVE NO. 2 ENGINE UNDER COVER SEAL

    Refer to PROCEDURE - Step 3

  3. DRAIN ENGINE OIL

    Refer to PROCEDURE - Step 4

  4. DRAIN ENGINE COOLANT

    Refer to PROCEDURE - Step 2

  5. REMOVE NO. 1 V BELT (COOLER COMPRESSOR TO CRANKSHAFT PULLEY)

    Refer to REMOVAL [12/2021 - ]

  6. REMOVE OIL FILTER SUB-ASSEMBLY

    Refer to PROCEDURE - Step 5

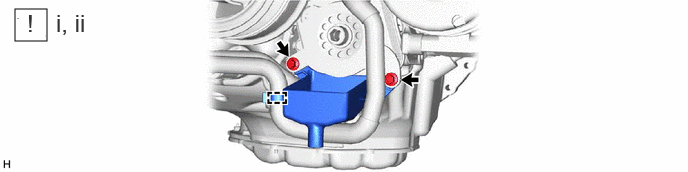

  7. REMOVE OIL FILTER RECEIVER
    1. GTY1074478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Detach the clamp.
      2. Using an 8 mm socket wrench, remove the 2 bolts and oil filter receiver.

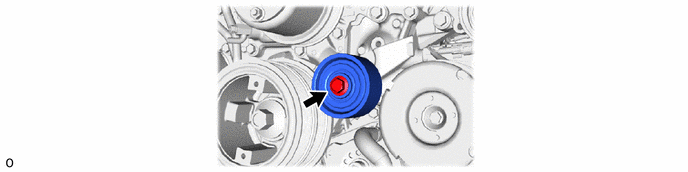

  8. REMOVE IDLER PULLEY SUB-ASSEMBLY
    1. GTY1043011Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

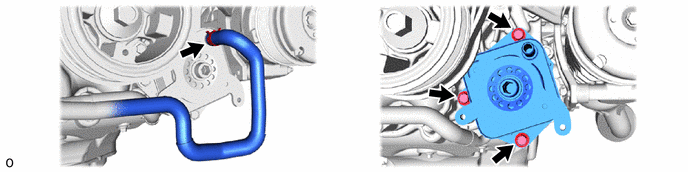

  9. REMOVE OIL COOLER ASSEMBLY
    1. GTY1043008Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

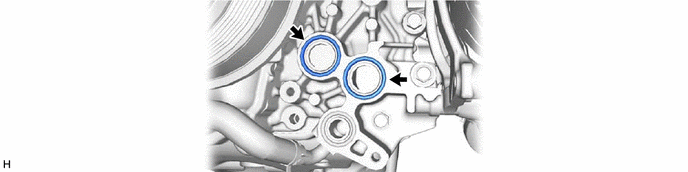

  10. REMOVE OIL COOLER GASKET
    1. GTY1042481Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

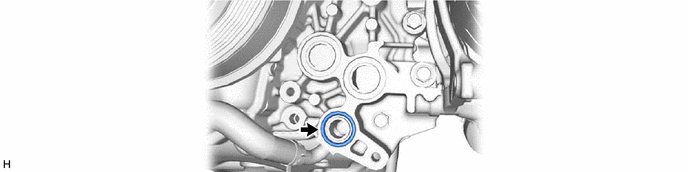

  11. REMOVE OIL COOLER O-RING
    1. GTY1042042Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
