Installation [12/2021 - ]: Procedure

  1. INSTALL PURGE VSV (DUTY VACUUM SWITCHING VALVE)

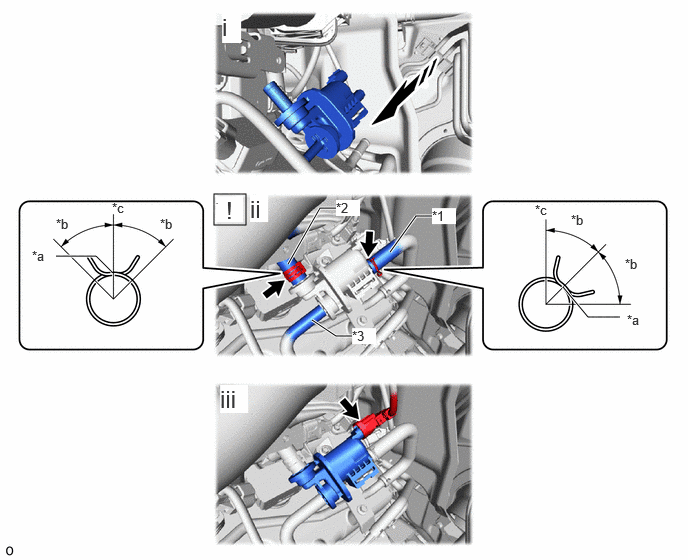

    1. GTY1080935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *1 No. 2 Fuel Vapor Feed Hose *2 No. 3 Fuel Vapor Feed Hose
      *3 No. 4 Fuel Vapor Feed Hose - -
      *a Paint Mark *b 45°
      *c Upper Side - -
      Install in this Direction - -
      1. Install the purge VSV (duty vacuum switching valve) to the fuel vapor feed pipe.
      2. Connect the No. 2 fuel vapor feed hose and No. 3 fuel vapor feed hose to the purge VSV (duty vacuum switching valve) and slide the hose clip to secure it.
        NOTE:

        Align the hose and the hose clip at the locations shown in the illustration and install them.

      3. Connect the connector.
