Removal [12/2021 - 10/2023]: Procedure

  1. REMOVE NO. 2 FUEL DELIVERY PIPE SUB-ASSEMBLY LH

    Refer to REMOVAL [12/2021 - ]

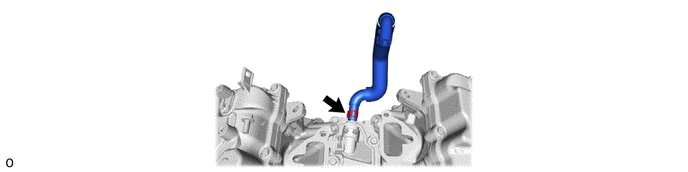

  2. REMOVE PCV HOSE
    1. GTY1041115Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

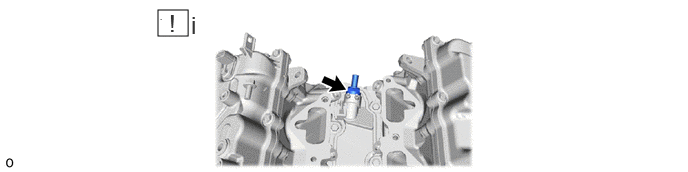

  3. REMOVE PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)
    1. GTY1074522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Using a ball joint lock nut wrench (22 mm), remove the PCV valve (ventilation valve sub-assembly) from the No. 1 PCV case (No. 1 ventilation case).
