Installation [12/2021 - ]: Procedure

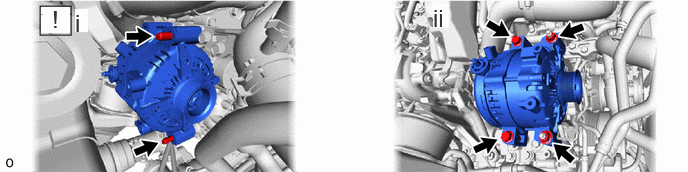

- INSTALL GENERATOR ASSEMBLY
- Using an E8 "TORX" socket wrench, temporarily install the generator assembly with the 2 stud bolts.
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- Install the generator assembly with the 2 bolts and 2 nuts.
Torque: 43 N.m (438 kgf/cm, 32 ft.lbf)

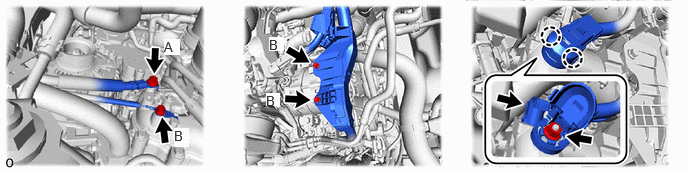

- Using an E8 "TORX" socket wrench, temporarily install the generator assembly with the 2 stud bolts.
Bolt A
Torque: 20 N.m (204 kgf/cm, 15 ft.lbf)
Bolt B
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
Nut
Torque: 12 N.m (122 kgf/cm, 9 ft.lbf)
- CONNECT WATER INLET PIPE
Torque: 21 N.m (214 kgf/cm, 15 ft.lbf)
- INSTALL NO. 1 AIR HOSE
Refer to PROCEDURE - Step 12 - INSTALL NO. 1 AIR TUBE ASSEMBLY
Refer to PROCEDURE - Step 9 - INSTALL FAN SHROUD
Refer to INSTALLATION [12/2021 - ]
- CONNECT ENGINE WIRE
Torque: 10 N.m (102 kgf/cm, 7 ft.lbf)
- INSTALL FRONT FENDER APRON TRIM PACKING A
- INSTALL FRONT WHEEL
Refer to INSTALLATION [12/2021 - ]
- CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
Refer to INSTALLATION [12/2021 - ]
- INITIALIZATION AFTER RECONNECTING BATTERY TERMINAL
HINT:
When disconnecting and reconnecting the battery, there is an automatic learning function that completes learning when the respective system is used.
