Disassembly [12/2021 - ]: Procedure

  1. REMOVE HOOD INSULATOR
    1. GTY1056247Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE WASHER NOZZLE SUB-ASSEMBLY
    Refer to PROCEDURE - Step 1

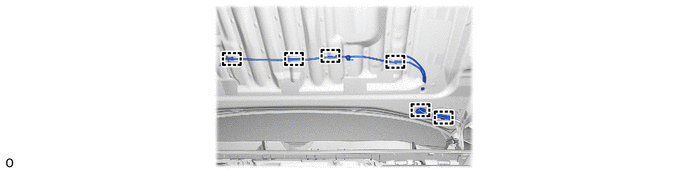

  3. REMOVE WINDSHIELD WASHER HOSE ASSEMBLY
    1. GTY1056244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
