Removal [12/2021 - ]: Procedure

  1. PRECAUTION
    NOTE:

    When replacing the multi-media module receiver assembly, make sure to check that the software has been updated for the following parts prior to replacing the assembly.

    If the multi-media module receiver assembly is replaced during a software update, the internally stored information will no longer match the information from the multi-media module receiver assembly, the software update will not be completed normally and the part will need to be replaced.

    Refer to PRECAUTION [12/2021 - ]
  2. REMOVE AIR CONDITIONING PANEL ASSEMBLY

    Refer to REMOVAL [12/2021 - ]

  3. REMOVE MULTI-MEDIA MODULE RECEIVER ASSEMBLY WITH BRACKET

    HINT:

    The illustrations are representative examples, and details may differ.

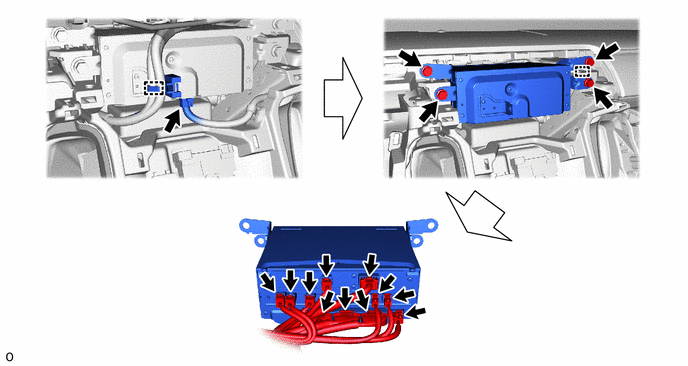

    1. GTY1069737Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE NO. 1 RADIO BRACKET
    1. GTY1069738Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE NO. 2 RADIO BRACKET
    1. GTY1069740Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
