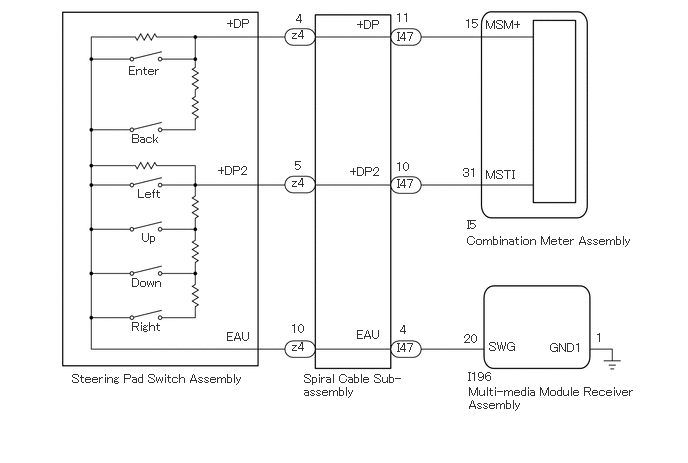

Steering Pad Switch Circuit [12/2021 - ]: Wiring Diagram

GTY1068175

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
