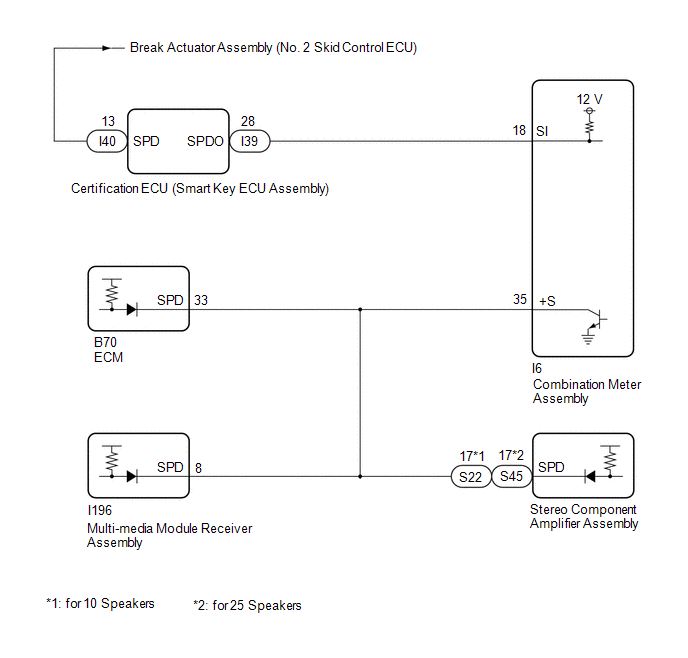

Speed Signal Circuit [12/2021 - ]: Wiring Diagram

GTY1059025

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
