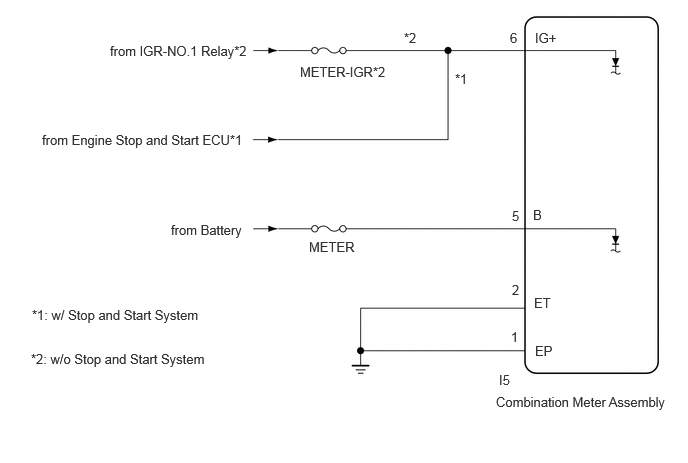

Entire Combination Meter does not Operate [12/2021 - ]: Wiring Diagram

GTY1059866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
