Caution / Notice / Hint

COMPONENTS (REASSEMBLY)

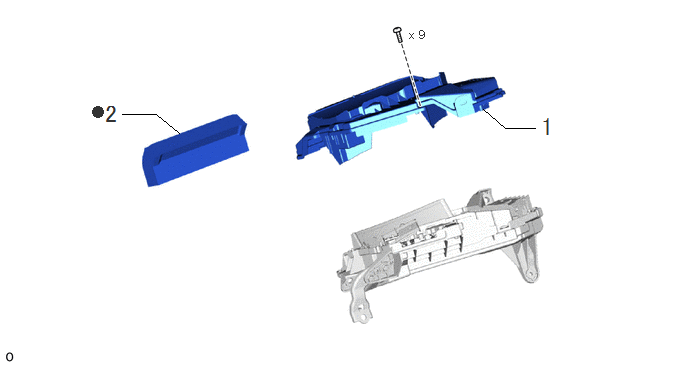

Fig 1: Headup Display Reassembly Components
GTY1072783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Procedure Part Name Code
1 NO. 1 COMBINATION METER MIRROR PLATE 83163 - - -
2 NO. 1 COMBINATION METER MIRROR CUSHION - - - -
• Non-reusable part - -
