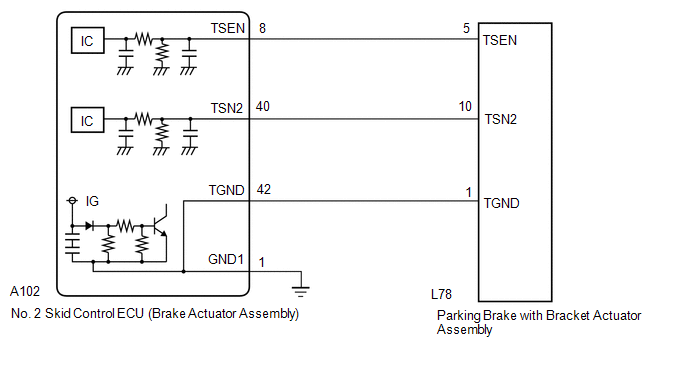

DTC C112A-62: Electric Parking Brake Tension Sensor "A/B" Correlation Signal Compare Failure [11/2021 - 10/2023]: Wiring Diagram

GTY1086576

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
